Installing Optical Waveguide

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

• The new lines will be secured to the fastening points for the old lines.
• The old wire harness remains installed in the vehicle.
• The old wire harness will only be disconnected/unplugged directly at the connected components.

Information

• When installing the wire harness, make sure the insulation of the line is not damaged.

Information

The range of spare parts available for optical waveguides depends on the vehicle equipment. Depending on the vehicle equipment, there is a specific set containing the individual optical waveguides.

Select the required optical waveguide and remove it from the set.

Information

Before routing a new optical waveguide:

• Visually check the locks, connector housing and contacts for damage.
• Replace damaged parts if necessary.

1. Cut off the connector with the optical contacts of the damaged optical waveguide, insulate it and tie the damaged optical waveguide to the main wire harness.
2. Plug the connector of the new optical waveguide -1-  into the TV tuner -2-  .
   Fig 1: Identifying Optical Waveguide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

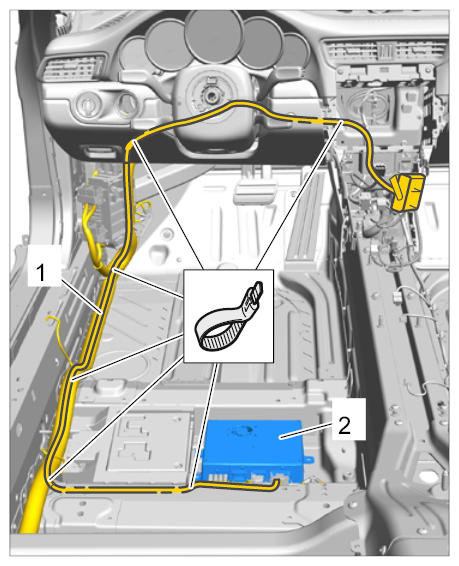

3. Route the new optical waveguide -1-  along the main wire harness, guide it through the existing cable ducts and tie it to the main wire harness using tie-wraps.

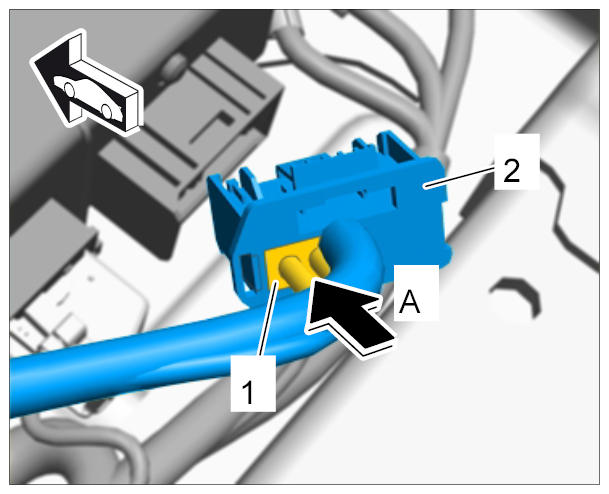

4. Plug in optical waveguide connector -1-  at the electric connector for PCM -2-  (-A-  ).
   Fig 2: Installing Connector Into Connector For PCM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

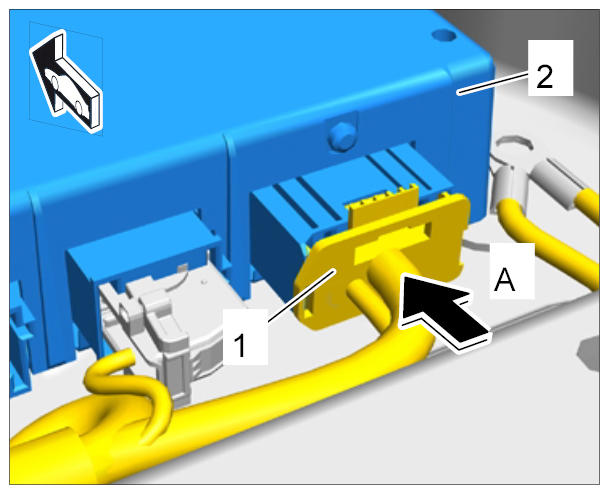

5. Plug in optical waveguide connector -1-  at the electric connector -2-  for the TV tuner -A-  .
   Fig 3: Installing Connector Into Electric Connector For TV Tuner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

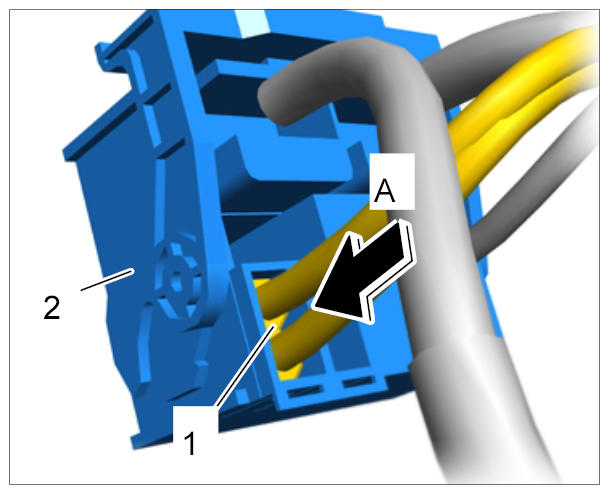

6. Plug electric plug connection -1-  into the TV tuner -2-  (-A-  ).
   Fig 4: Installing Electric Plug Connection Into TV Tuner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
