Disconnecting Optical Waveguide

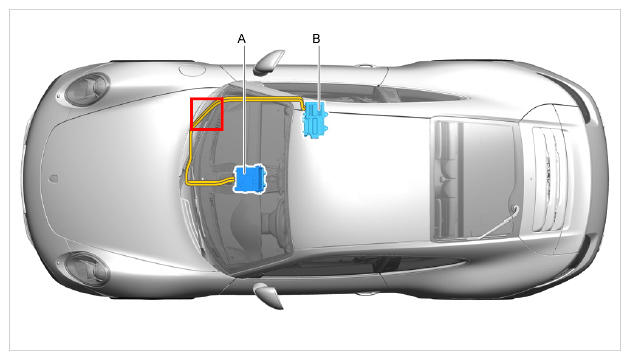

Fig 1: Identifying Optical Waveguide Installation Position (PCM To Loudspeaker Amplifier)
G09999807Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. PCM
  2. Loudspeaker amplifier
  1. Release optical waveguide connector -1-  at the electric connector for PCM -2-  (-a-  ) and pull it off -B-  .

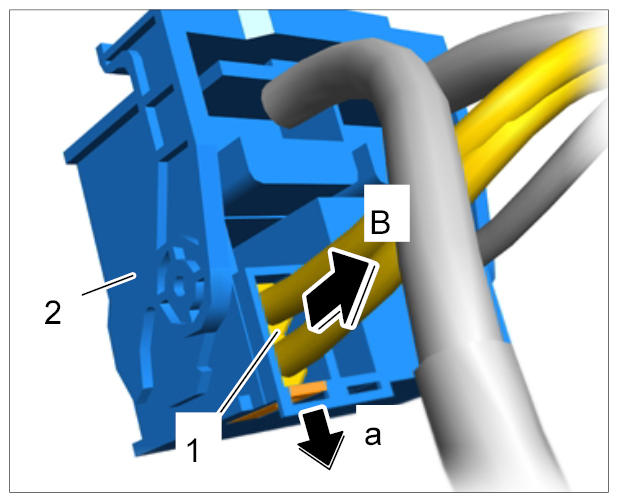

    Fig 2: Disconnecting Optical Waveguide Connector For PCM
    G09999808Courtesy of PORSCHE CARS NORTH AMERICA, INC.
