Disconnecting Optical Waveguide

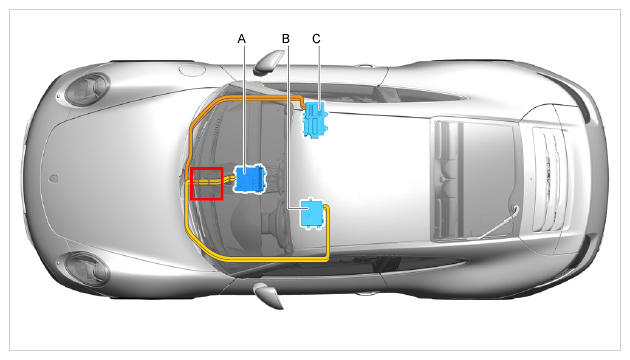

Fig 1: Identifying Optical Waveguide Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

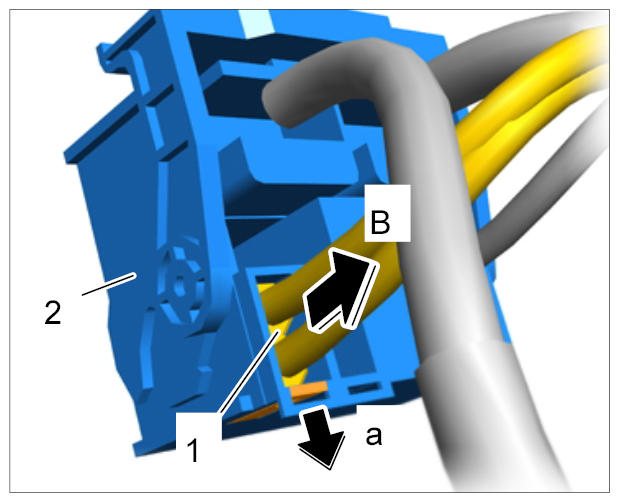

Release electric plug connection -1- on the TV tuner -2- (-a- ) and pull it off -B- .

Fig 2: Disconnecting Electric Connector From TV Tuner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

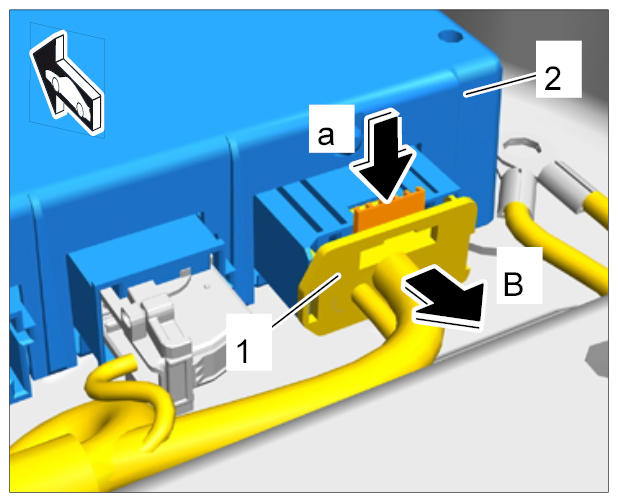

Release optical waveguide connector -1- at the electric connector -2- for the TV tuner -a- and pull it off -B- .

Fig 3: Disconnecting Optical Waveguide Connector For TV Tuner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

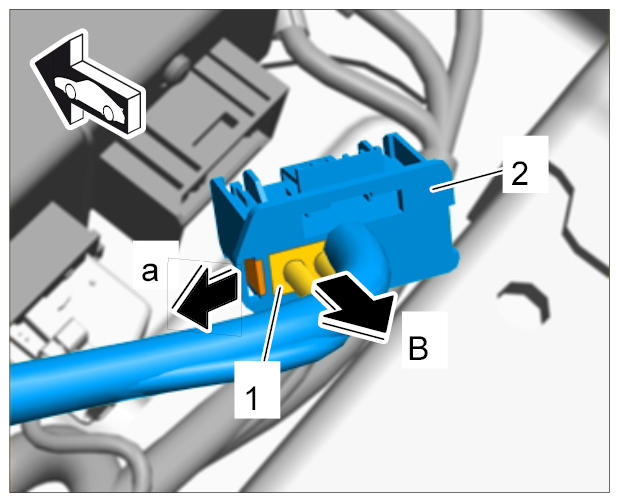

Release optical waveguide connector -1- at the electric connector -2- for PCM -a- and pull it off -B- .

Fig 4: Disconnecting Optical Waveguide Connector For PCM
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
