Removing Wire Harness For Rear Spoiler

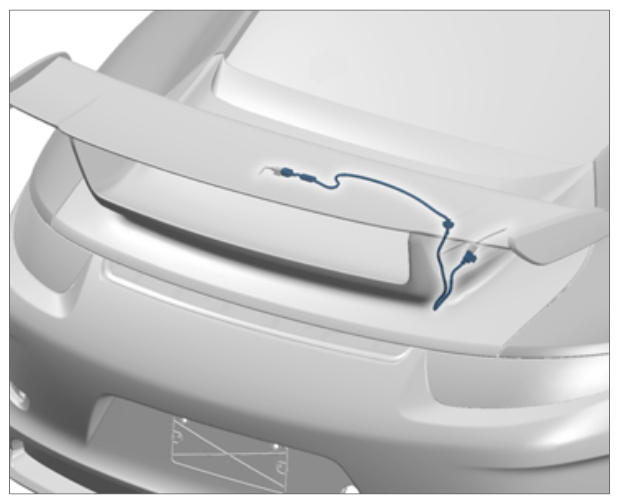

Fig 1: Identifying Rear Spoiler Wire Harness Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

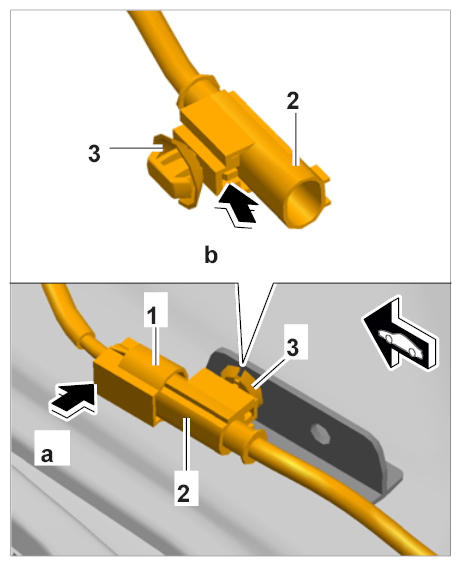

1. Release and disconnect electric plug connection -1-  (-a-  ).
2. Release electric plug connection -2-  (-b-  ) and pull it to the rear and off the retaining clip -3-  .
   Fig 2: Disconnecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

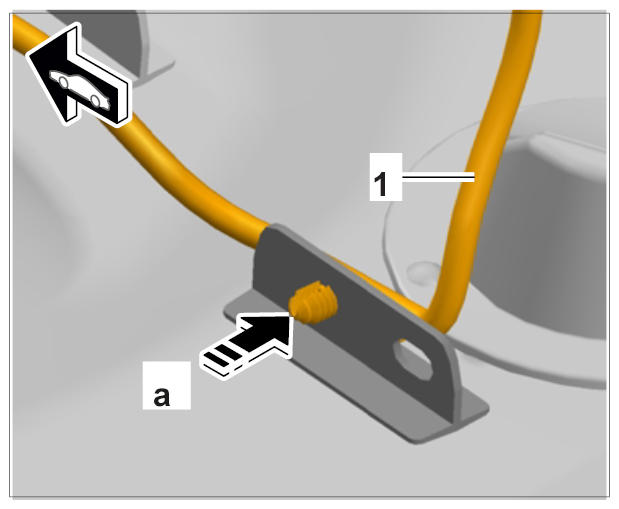

3. Unclip wire harness for rear spoiler -1-  from the retaining bracket in the rear lid -a-  .
   Fig 3: Removing Wire Harness For Rear Spoiler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove rear spoiler. → 665819 REMOVING AND INSTALLING REAR SPOILER

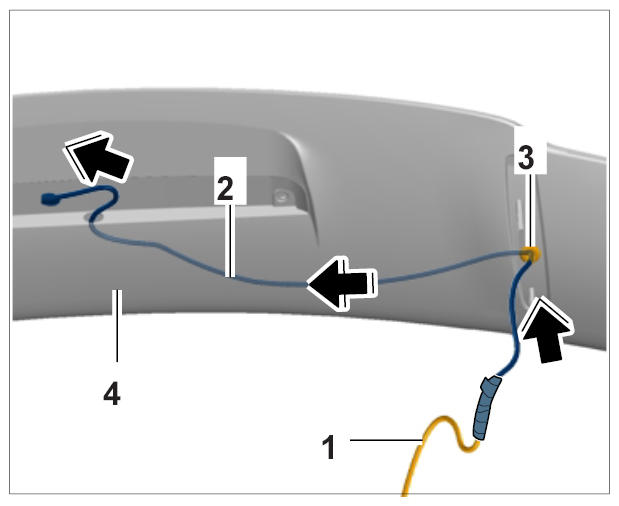

5. Secure pulling aid -1-  to wire harness for rear spoiler -2-  as shown.
6. Press rubber sleeve -3-  into the rear spoiler -4-  and pull wire harness for rear spoiler out of the rear spoiler.
7. Detach wire harness for rear spoiler from the pulling aid.
   Fig 4: Removing Wire Harness For Rear Spoiler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
