Disconnecting Wire Harness For Airbag

→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.

→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.

→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

Information

Allocation of lines - see appropriate SYSTEM WIRING DIAGRAMS information.

1. Disconnect connector for airbag triggering unit. → 695319 REMOVING AND INSTALLING TRIGGERING UNIT FOR AIRBAG
2. Disconnect the relevant line on the connector for the triggering unit.

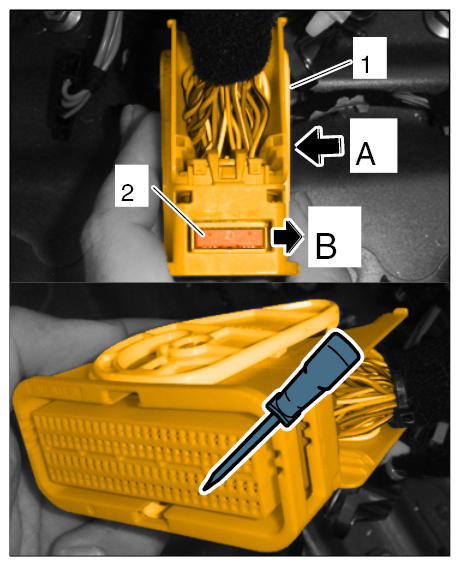

   Fig 1: Disconnecting Line From Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Remove connector cover -1-  (-A-  ).
   2. 2.2. Pull out the lock -2-  (-B-  ).
   3. 2.3. Using press-out tool 1575-1P  from the press-out tool set Nr.155 Pos.1  , disconnect the relevant pin from the contact strip.
   4. 2.4. Cut off the disconnected pin, insulate the end of the line and tie it to the wire harness.
3. Disconnect connector for airbag sensor. → 695119 REMOVING AND INSTALLING AIRBAG SENSOR
4. Cut off the connector for the airbag sensor on the damaged sub-part, insulate the lines and tie them to the main wire harness.
