Removing Wire Harness For Convertible Top

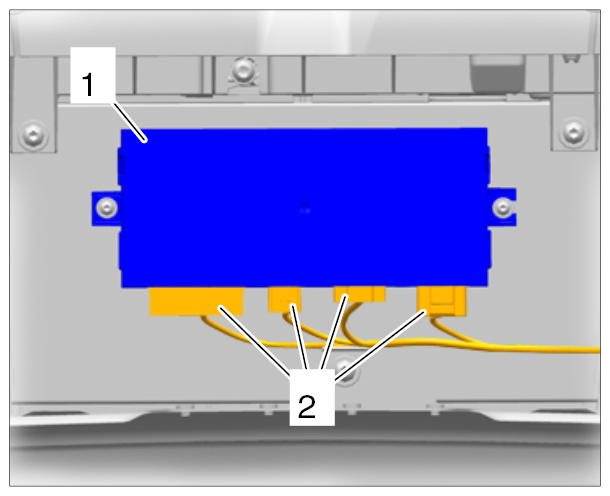

- Disconnect electric plug connection -2-
on the control unit for the convertible top -1 -
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

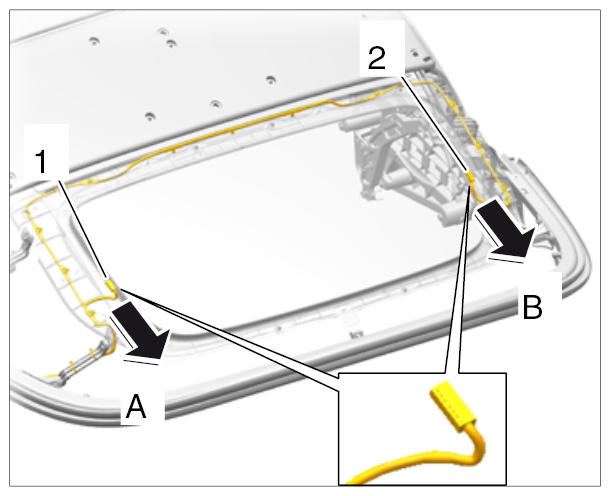

- Disconnect the two contacts for rear window heating -1, 2-
(-A, B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

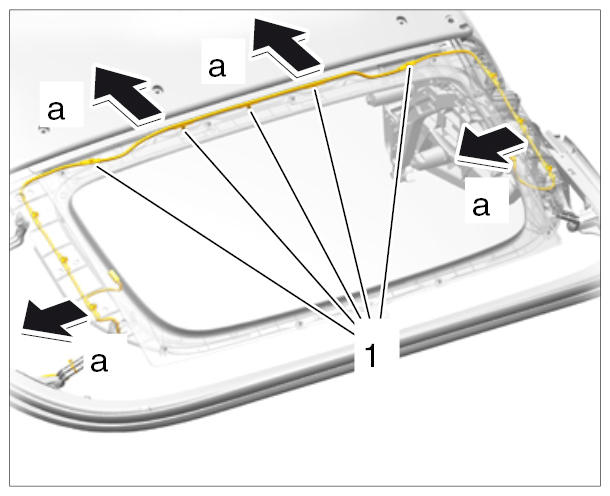

- Unclip wire harness around the rear window -a-
and remove it from the rear roof guide -1-
. Remove wire harness from the tension bow.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

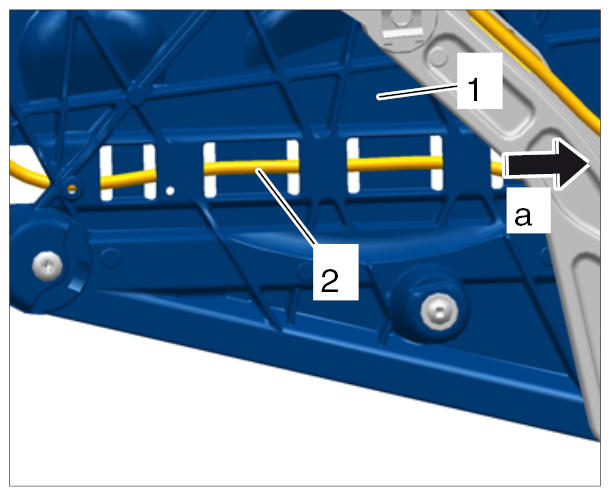

- Take wire harness for rear window heating -2-
out of the mountings -1-
and pull it out through the cable duct -a-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

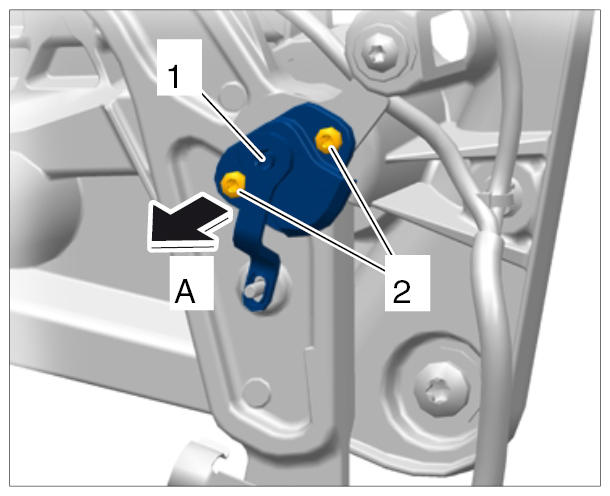

- Unscrew the two fastening screws -2-
on the position sensor -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unclip wire harness -1, 2, 3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

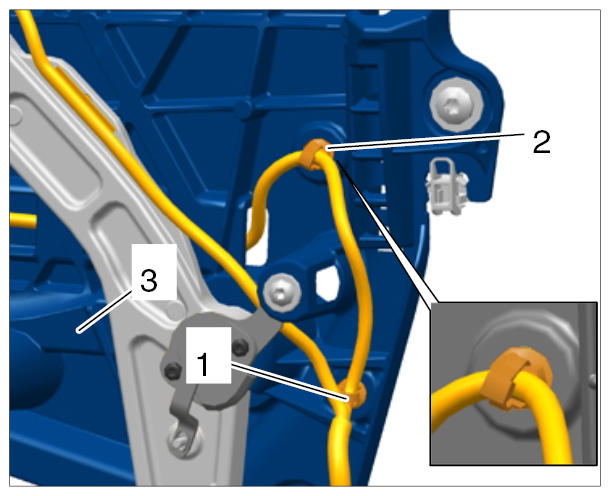

- Cut open tie-wraps -2-
on the roof guide -1-
and loosen the wire harness.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

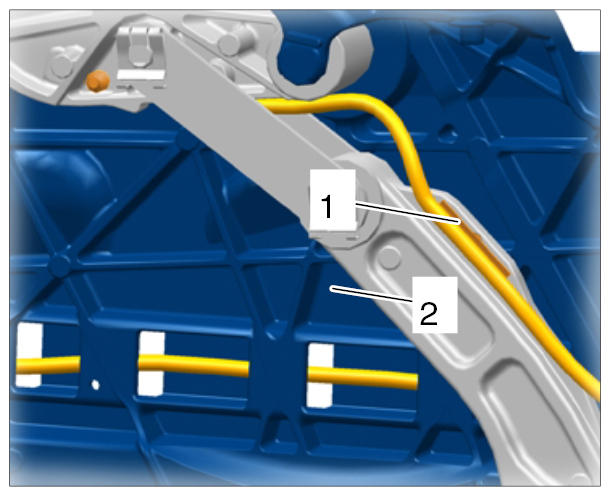

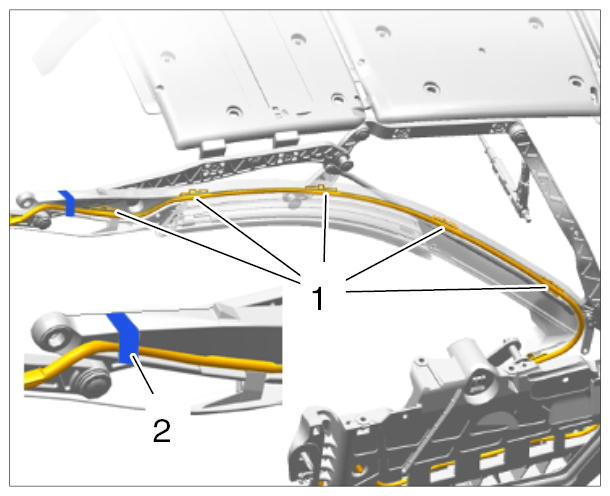

- Unclip wire harness from the groove on the roof guide -1-
(cut open existing taped connections -2-
) and remove the wire harness from the roof guide.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

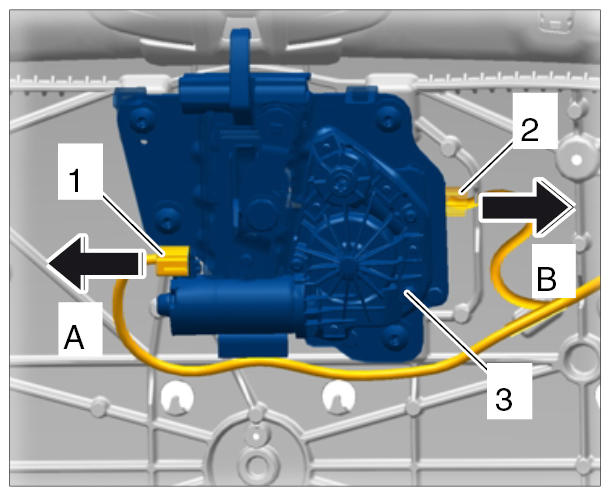

- Release electric plug connections -1, 2-
at the latch -3-
(-A, B-
) and unplug the connectors.
