Installing Wire Harness For Convertible Top

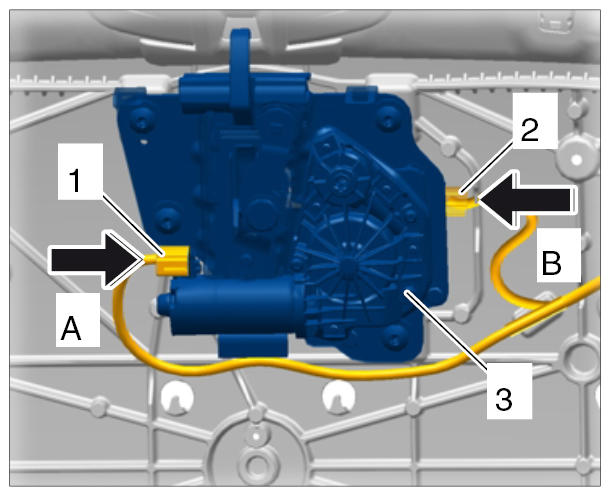

- Plug in electric plug connections -1, 2-
until they engage securely and lock at the latch -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

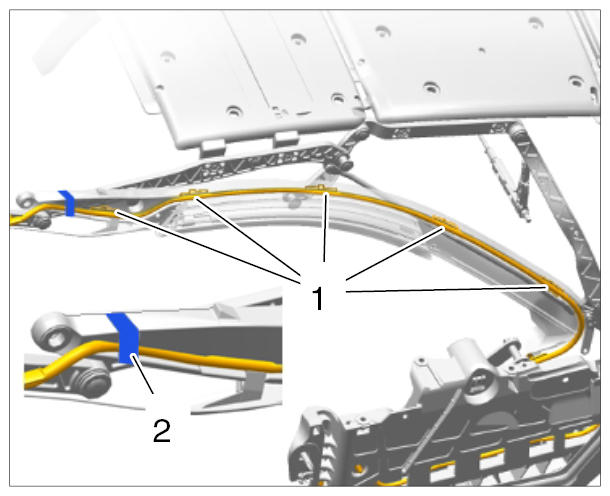

- Clip wire harness into the groove on the roof guide -1-
and secure the wire harness with fabric tape -2-
approx. 3 cm away from the "lug".
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

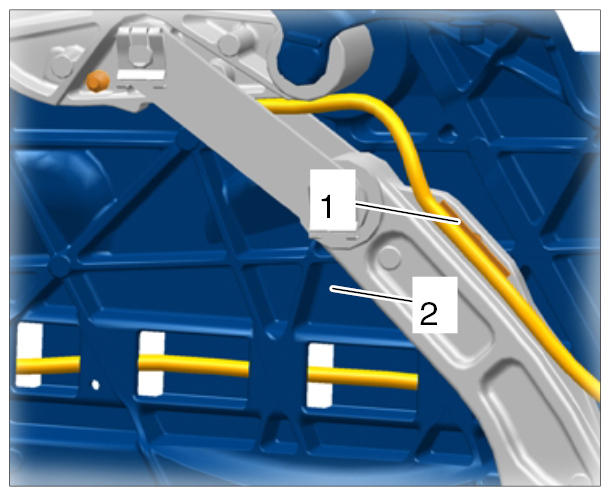

- Fit a tie-wrap -2-
on the roof guide -1-
and secure the wire harness.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

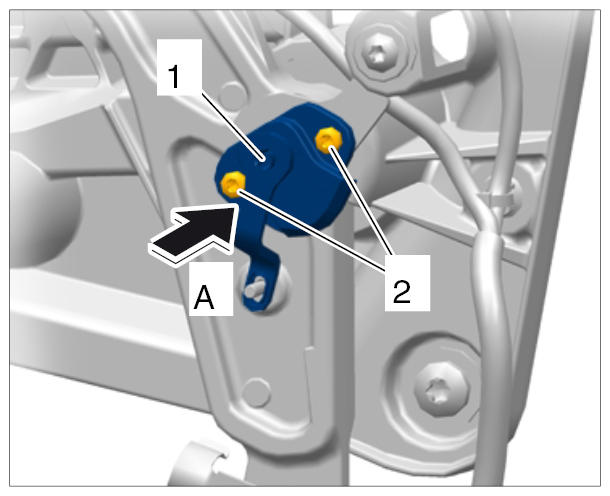

- Secure the position sensor -1-
using the two fastening screws -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

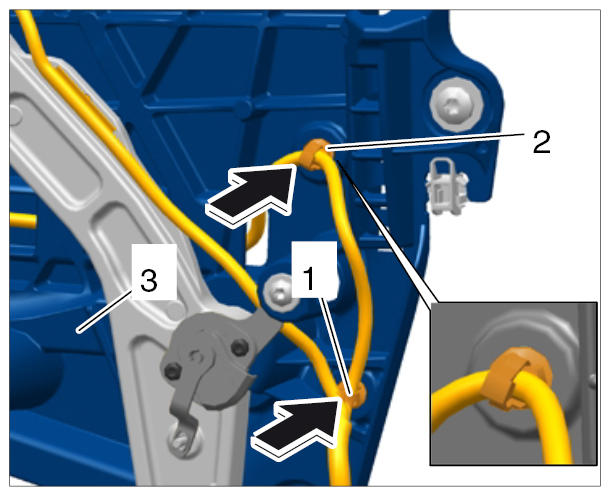

- Clip in wire harness -3, 2, 1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

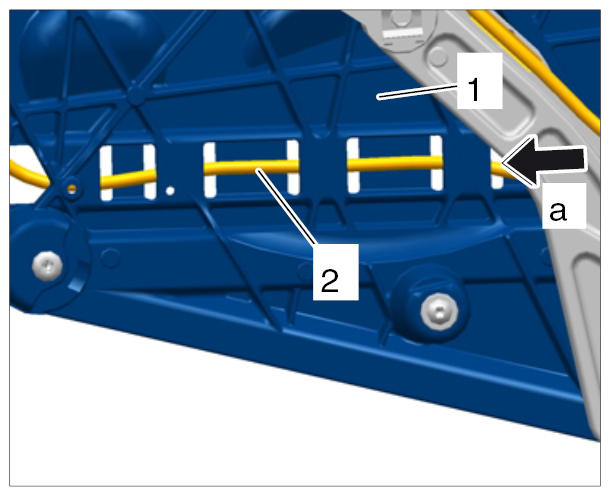

- Guide wire harness for rear window heating -2-
through the cable duct -a-
and insert it into the mounting -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

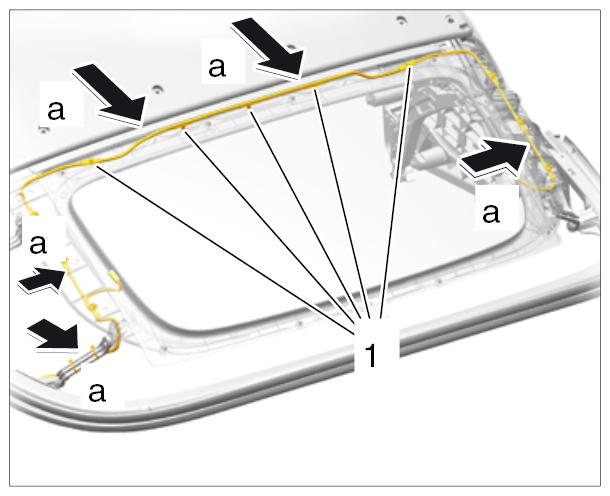

- Clip in wire harness around the rear window -a-
and secure it to the rear roof guide -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

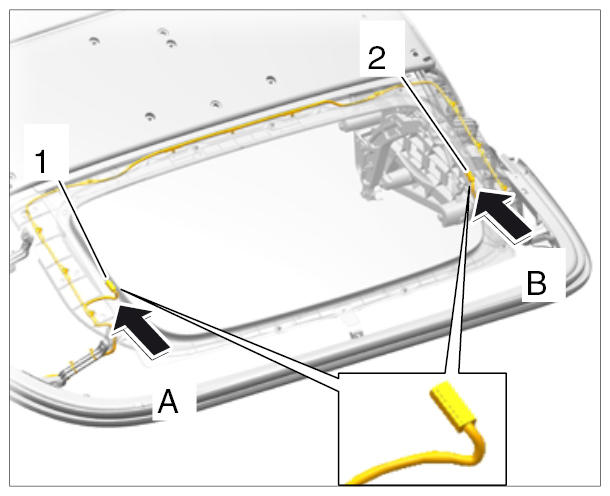

- Connect the two contacts for rear window heating -1, 2-
(-A, B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

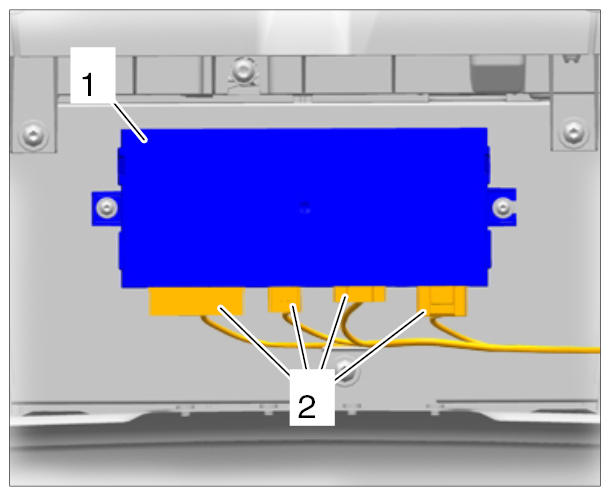

- Plug in electric plug connections -2-
on the control unit for the convertible top -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
