Removing Wire Harness For Engine

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

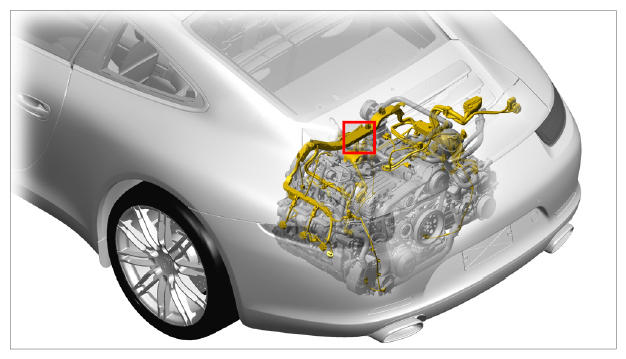

  Fig 1: Identifying Engine Wire Harness Installation Position

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

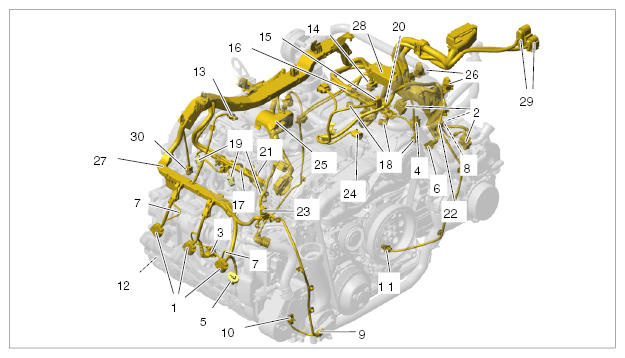

  Fig 2: Overview For Engine Wire Harness Connector

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Bar ignition modules, cylinder 1-3
  2. Bar ignition modules, cylinder 4-6
  3. Solenoid hydraulic valve for valve lift adjustment
  4. Solenoid hydraulic valve for valve lift adjustment
  5. Hall sender
  6. Hall sender
  7. Ground straps
  8. Ground straps
  9. Coolant regulator
  10. High-pressure pump
  11. Oil pressure control valve
  12. Oil level sensor
  13. Crankshaft pulse sender
  14. Fuel pressure sensor
  15. Oil pressure sender
  16. Cable duct
  17. Cable duct
  18. Injectors, cylinder 4-6
  19. Injectors, cylinder 1-3
  20. Knock sensor
  21. Knock sensor
  22. Solenoid hydraulic valve for camshaft control
  23. Solenoid hydraulic valve for camshaft control
  24. Air-conditioning compressor
  25. Starter
  26. Switch-over valves
  27. Cable duct
  28. Cable duct
  29. Engine/vehicle connection points
  30. Coolant temperature sensor

Bottom of engine:

1. Release and unplug electric plug connections on the six bar ignition modules. → 282020 REMOVING AND INSTALLING IGNITION COILS
2. Unscrew ground straps for the bar ignition modules for cylinder 1-6 -1-  .

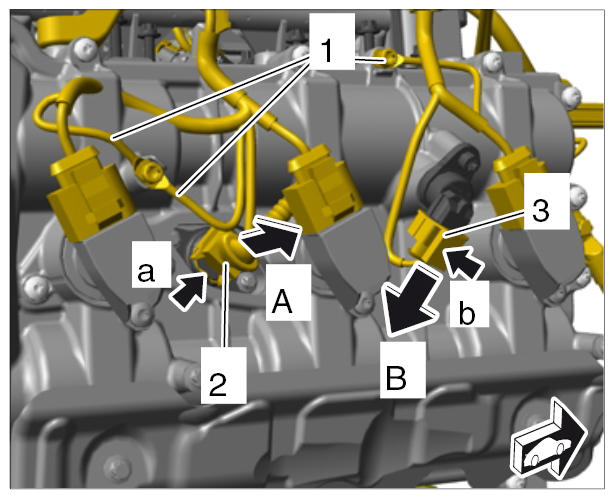

   Fig 3: Disconnecting Ground Straps And Plug Connections On Cylinder Head

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release electric plug connections -2-  at the solenoid hydraulic valves for valve lift adjustment at the left and right -a-  and pull them off -A-  .
4. Release electric plug connections -3-  on the hall senders at the left and right -b-  and pull them off -B-  .
5. Release electric plug connection -1-  on the high-pressure pump -a-  and pull it off -A-  .

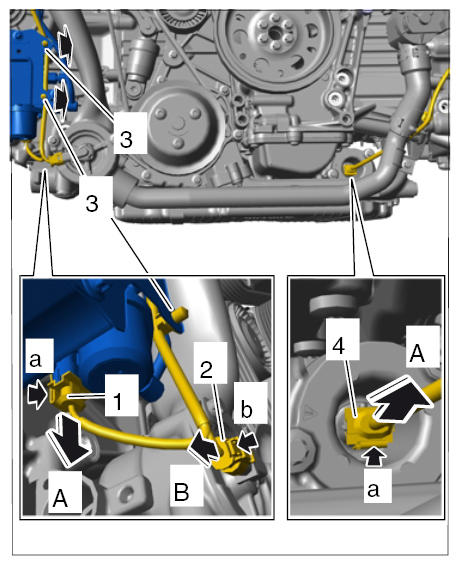

   Fig 4: Disconnecting Plug Connections On Front Of Engine

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Release electric plug connection -2-  at the coolant regulator -b-  and pull it off -B-  .
7. Unclip electric lines for the high-pressure pump and coolant regulator from the brackets -3-  and pull them through in an upward direction.
8. Release electric plug connection -4-  on the oil regulating valve -a-  and pull it off -A-  .
9. Unclip electric lines from the brackets -1-  .

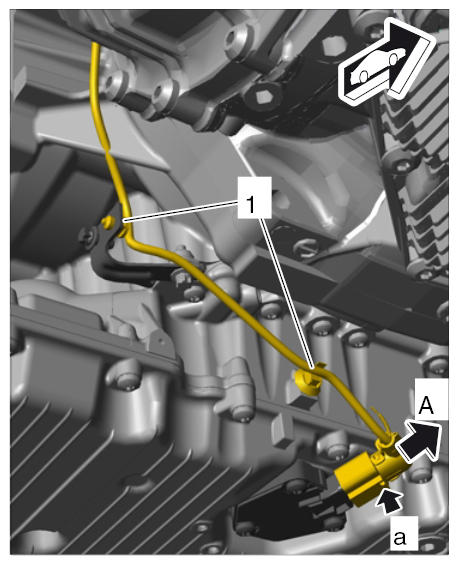

   Fig 5: Disconnecting Plug Connection On Oil Level Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Release electric plug connection on the oil level sensor -a-  and pull it off -A-  .
11. Release electric plug connection -1-  on the crankshaft pulse sender -a-  and pull it off -A-  .

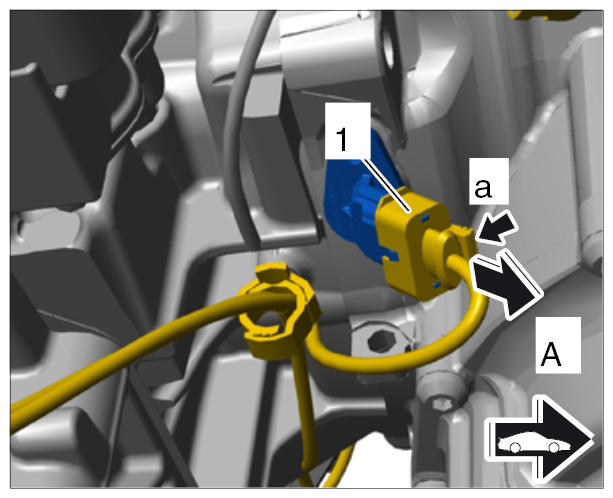

    Fig 6: Disconnecting Plug Connection On Crankshaft Pulse Sender

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Pull electric lines for the oil level sensor and crankshaft pulse sender through in an upward direction.

    Top of engine:

13. Release electric plug connection -1-  on the oil pressure sender -a-  and pull it off -A-  .

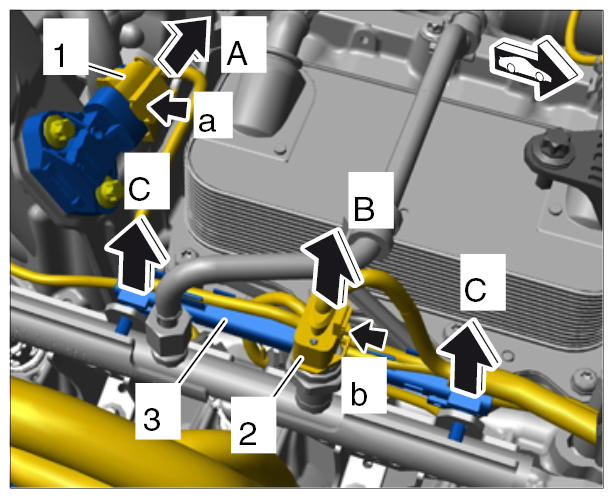

    Fig 7: Disconnecting Plug Connections On Right Cylinder Head

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Release electric plug connection -2-  on the fuel pressure sensor -b-  and pull it off -B-  .
15. Unclip cable ducts -3-  at the fuel distributor pipes -C-  .
16. Release and unplug electric plug connections on the six injectors. → 243019 REMOVING AND INSTALLING FUEL COLLECTION PIPE WITH FUEL INJECTORS
17. Release and unplug electric plug connections on both knock sensors. → 287219 REMOVING AND INSTALLING KNOCK SENSOR
18. Release electric plug connections -1-  on the solenoid hydraulic valves for camshaft control at the left and right -a-  and pull them off -A-  .

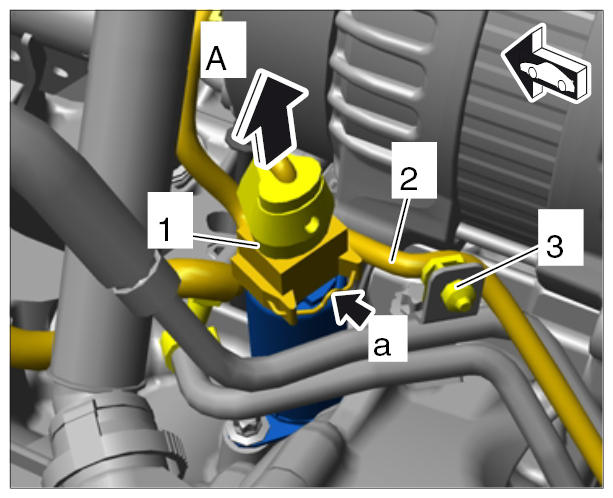

    Fig 8: Disconnecting Plug Connections On Solenoid Hydraulic Valves

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
19. Unclip electric line -2-  from the bracket -3-  .
20. Release electric plug connection -1-  on the coolant temperature sensor -a-  and pull it off -A-  .

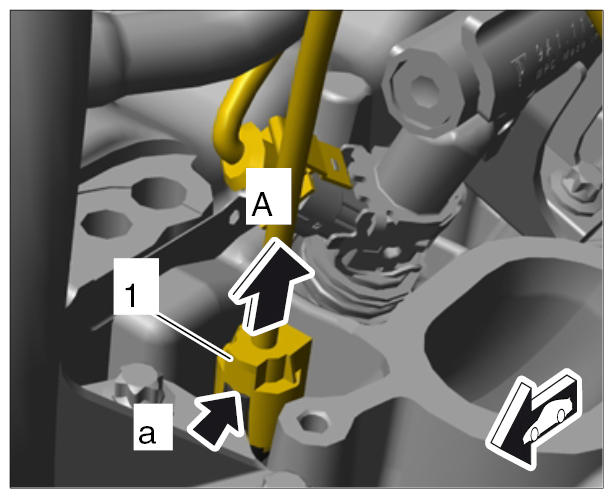

    Fig 9: Disconnecting Plug Connection On Coolant Temperature Sensor

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
21. Release electric plug connection -1-  on the air-conditioning compressor (-a-  ) and pull it off the holder -2-  (-A-  ).

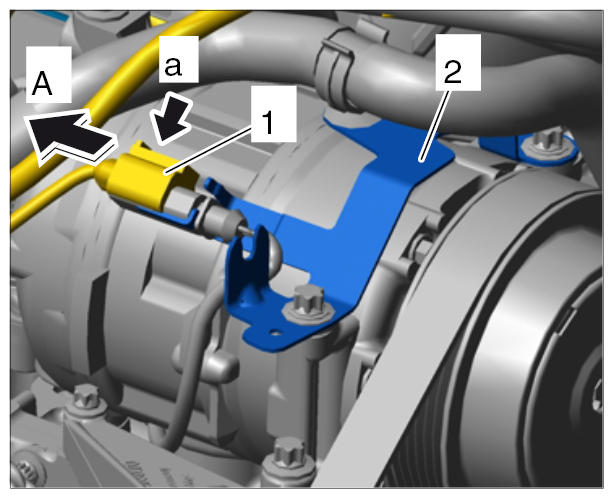

    Fig 10: Disconnecting Plug Connection On Air-Conditioning Compressor

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
22. Unclip protective cover -1-  on the starter.

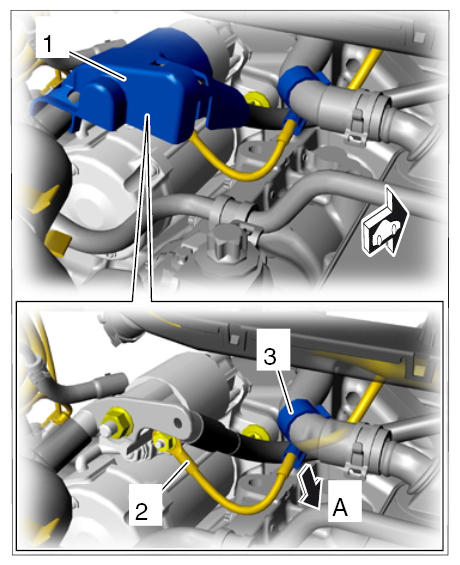

    Fig 11: Disconnecting Plug Connection On Starter

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
23. Remove electric line -2-  on the starter.
24. Unclip electric line -2-  from the bracket -3-  (-A-  ).
25. Release electric lines -1-  on the change-over valves -2-  (-a-  ) and pull them off -A-  .

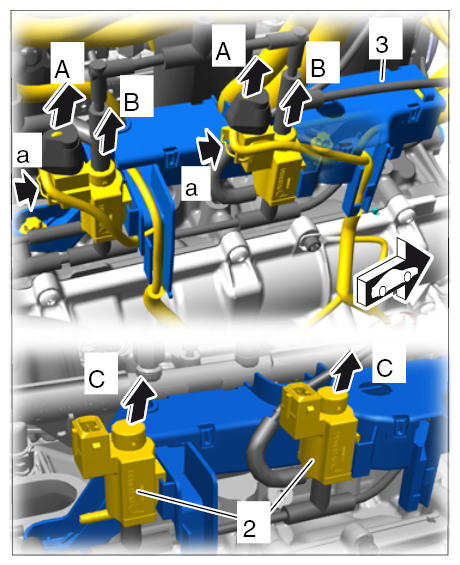

    Fig 12: Disconnecting Change-Over Valves And Cable Ducts

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
26. Pull vacuum lines off the change-over valves -2-  (-B-  ).
27. Unclip change-over valves -2-  at the cable duct -3-  and pull them off -C-  .
28. Unscrew fastening screws on the cable ducts -3-  .
29. Disconnect cable ducts -3-  from the cylinder heads.
30. Release electric plug connection -1-  (-a-  ) and pull it off -A-  .

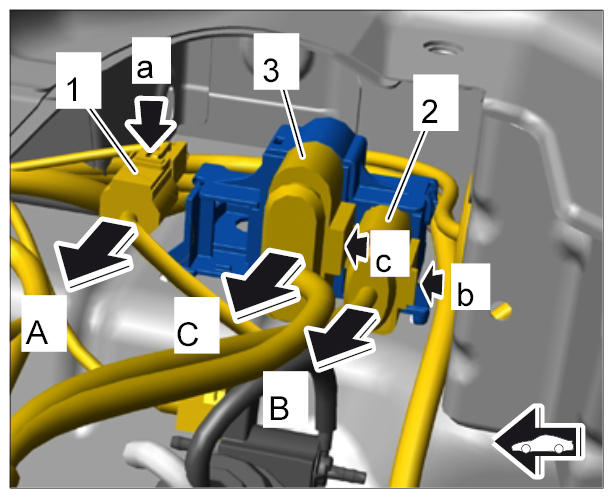

    Fig 13: Disconnecting Connection Points On Engine-Compartment Wire Harness

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
31. Release electric plug connection -2-  (-b-  ) and pull it off -B-  .
32. Release electric plug connection -3-  (-c-  ) and pull it off -C-  .
33. Remove wire harness.
