Removing Cutoff Relay

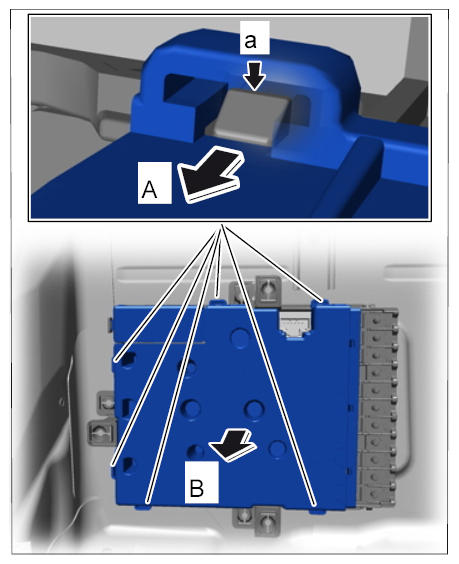

- Remove trim panel on power distributor.
- 1.1. Press in the locking lug -a-
, lift up the trim panel -A-
and make sure that the trim panel cannot lock into place again. Repeat the procedure for all locking lugs.
- 1.2. Remove trim panel -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

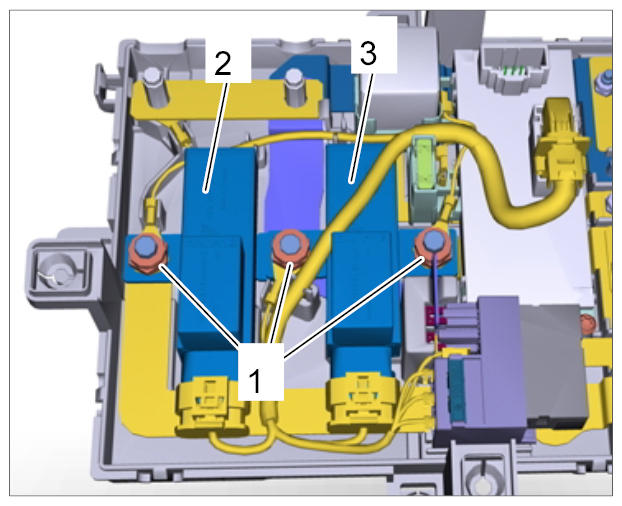

- Unscrew fastening nuts -1-
on the cutoff relays -2-
and -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

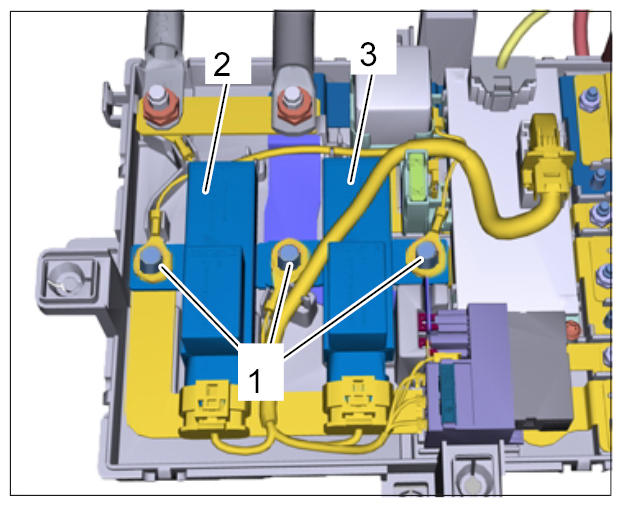

- Remove eyelets -1-
of the electric connections.
- 3.1. First remove cutoff relay -3-
, then cutoff relay -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

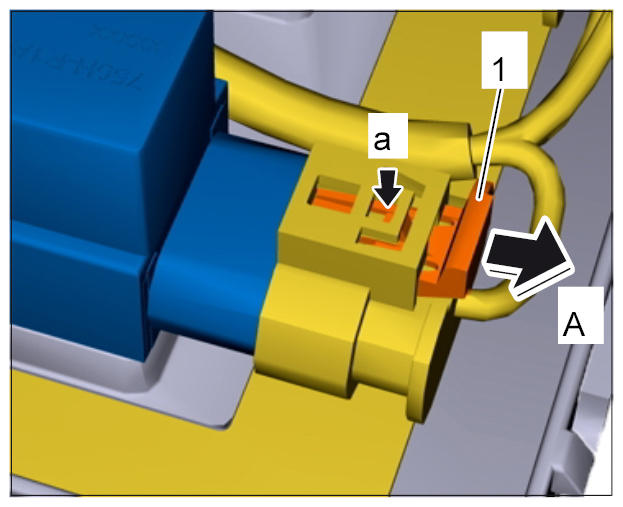

- Release the latch -1-
on the electric plug connection for the cutoff relay -a-
, then pull out the latch -1-
. Unplug electric plug connection -A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
