Installing Cutoff Relay

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

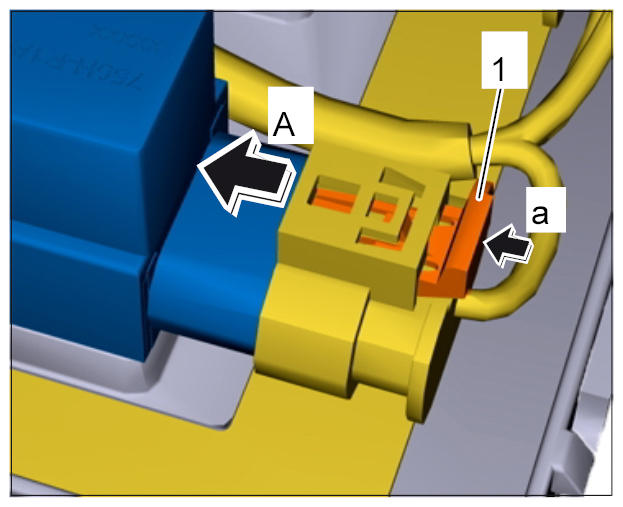

1. Connect electric plug connection on the cutoff relay -A-  , then slide in the latch -1-  (-a-  ) until it locks securely.
   Fig 1: Connecting Electric Plug Connection On Cutoff Relay

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

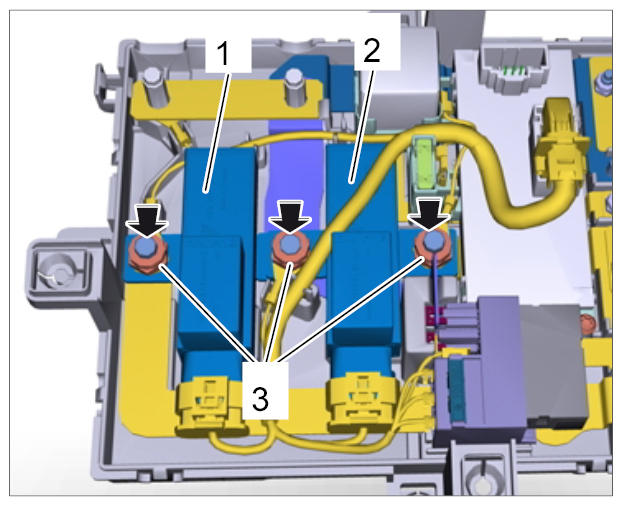

2. First position cutoff relay -1-  , then cutoff relay -2-  .
   1. 2.1. Slide the eyelets of the electric lines onto the studs -A-  .
      Fig 2: Identifying Cutoff Relays

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

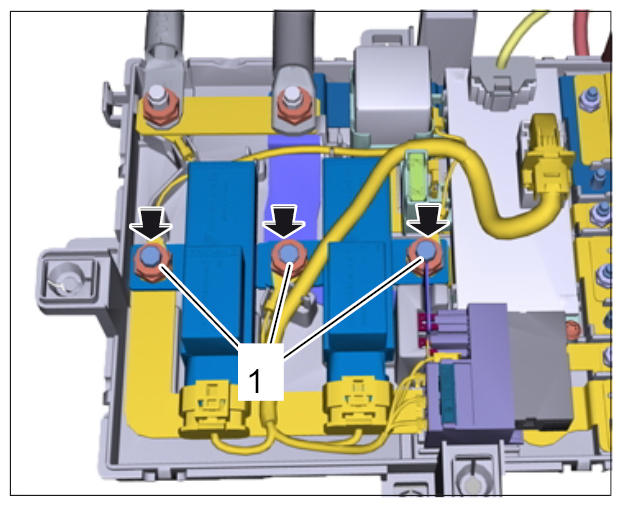

3. Tighten the fastening nuts -1-  to secure the cutoff relays. → Tightening torque: 12 Nm (9 ftlb.)+/-1 Nm (+/-0.5 ftlb.)
   Fig 3: Locating Cutoff Relay Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

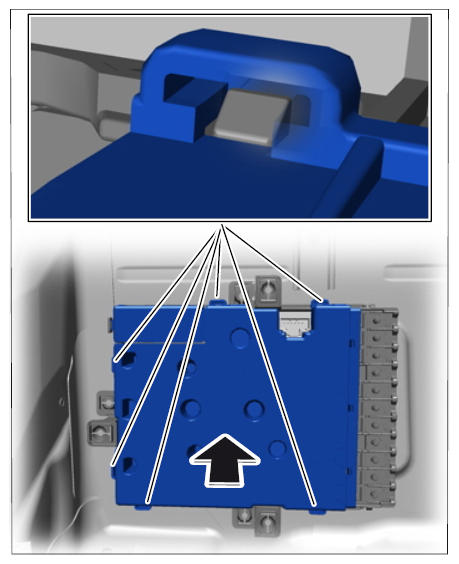

4. Press the cover of the power distributor onto the locking lugs -arrow-  until all the locking lugs engage securely.
   Fig 4: Fitting Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
