WM 974519 Removing And Installing Wire Harness For Battery Wiring (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition"): Information

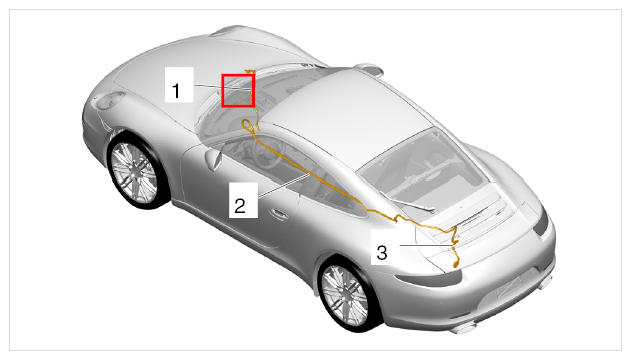

Fig 1: Identifying B+ Line Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. B+ line for battery
2. B+ line from power distributor to transmission connection point
3. B+ line from transmission connection point to generator
