Removing Wire Harness For Centre Console

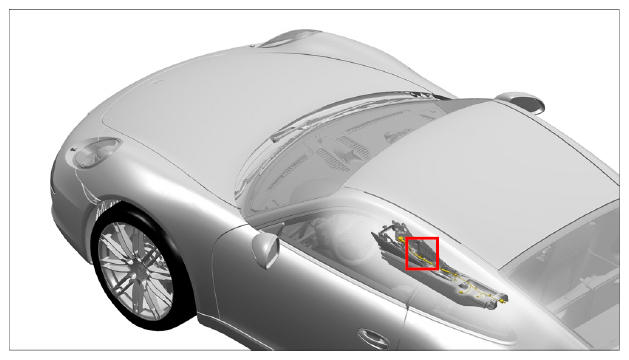

Fig 1: Identifying Centre Console Wire Harness Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Switch off ignition and remove remote control (hand-held transmitter).
2. Disconnect the cabin sensor plug connection -arrow-  .

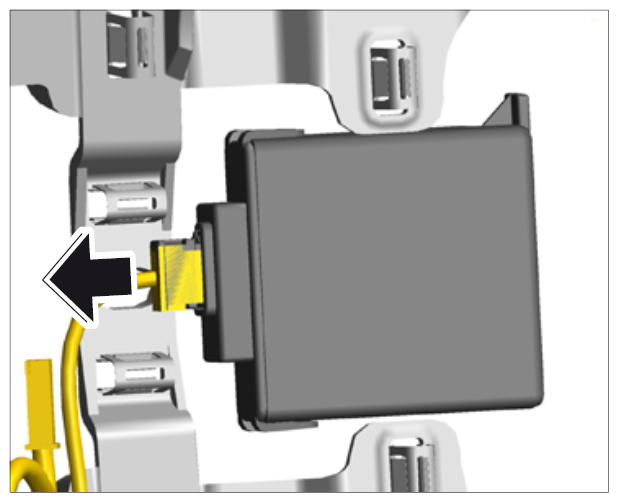

   Fig 2: Disconnecting Cabin Sensor Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove center console wire harness.

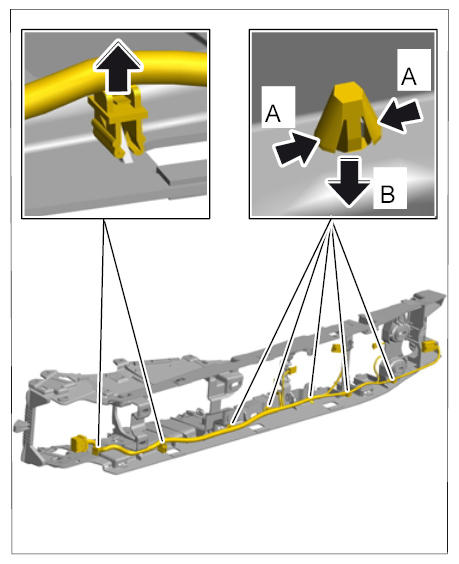

   Fig 3: Releasing Centre Console Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Unclip front fixing clips -arrow-  .
   2. 3.2. Squeeze rear fixing clips together -A-  and pull them out of the center console -B-  .
   3. 3.3. Remove wire harness.
