Installing Wire Harness For Centre Console

Information

The wire harness for center console spare parts scope means the scope for fully-equipped vehicles. Depending on the vehicle equipment, connectors not required are tied to the wire harness for center console using tie-wraps.

When doing this, ensure the lines are routed correctly so that no line becomes trapped or damaged.

1. Install wire harness.

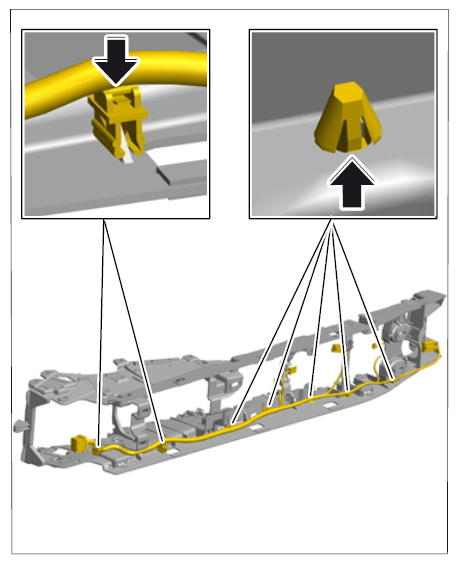

   Fig 1: Installing Centre Console Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Place wire harness in installation position.
   2. 1.2. Clip in front fixing clips -arrow-  .
   3. 1.3. Clip in rear fixing clips -arrow-  .
2. Plug in cabin sensor plug connection -arrow-  and check that it is seated securely.

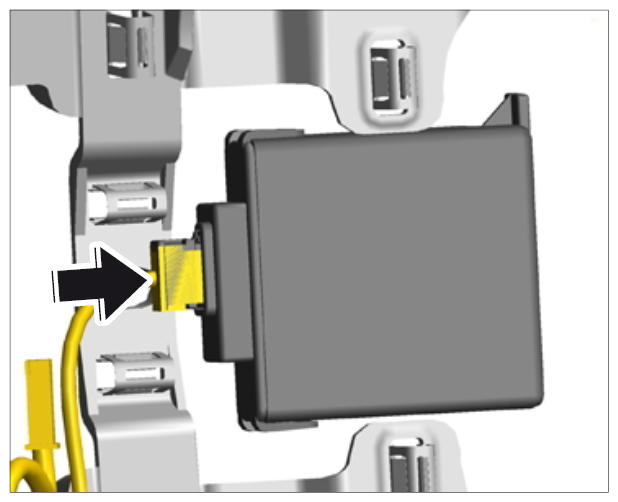

   Fig 2: Installing Cabin Sensor Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
