Removing Front Wire Harness

The front wire harness is made up of two separate parts (left and right).

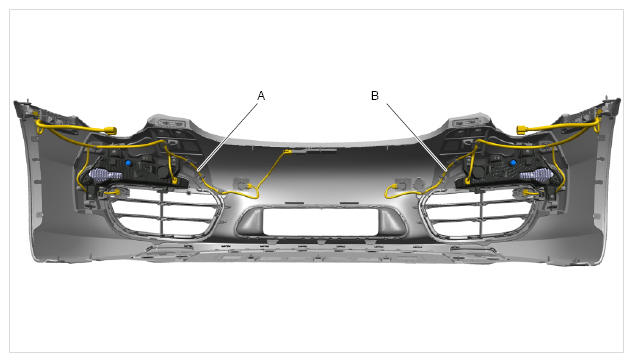

Fig 1: Identifying Front Wire Harness (Right And Left)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Front wire harness, left
2. Front wire harness, right

The procedure for removing the front wire harness at the left is described here.

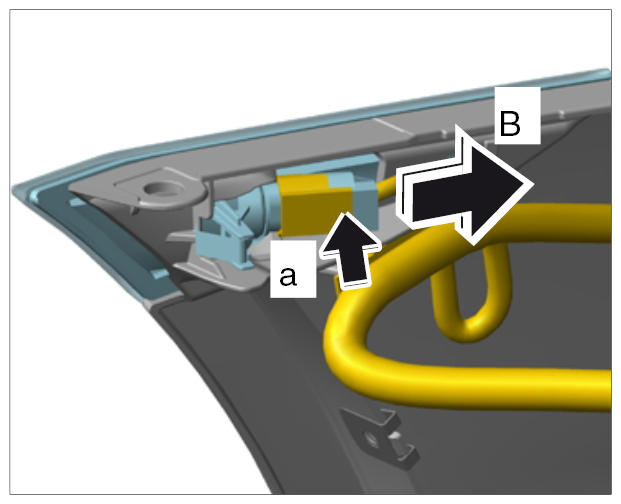

1. Release plug connection on the side direction indicator light -arrow a-  and disconnect it -arrow B-  .
   Fig 2: Disconnecting Connector For Direction Indicator Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

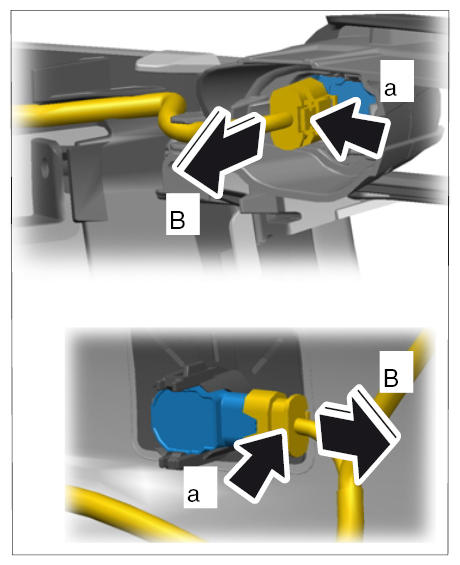

2. Release plug connection for the ParkAssist sensors -arrows a-  and pull it off -arrows B-  .
   Fig 3: Disconnecting Connector For ParkAssist Sensors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

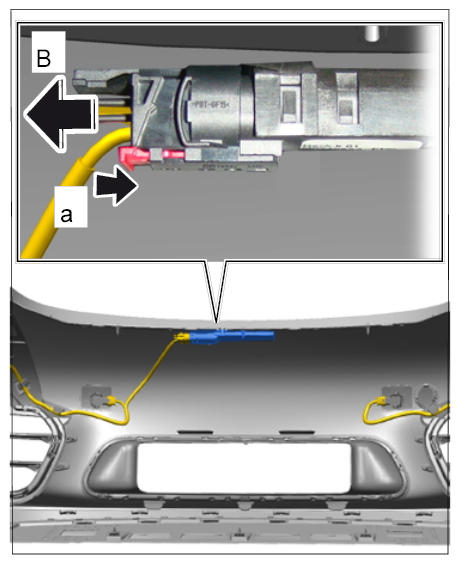

3. Vehicles with Kessy:  Release plug connection for proximity sensor by pressing in the lock -arrow a-  and disconnect it -arrow B-  .
   Fig 4: Disconnecting Connector For Proximity Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

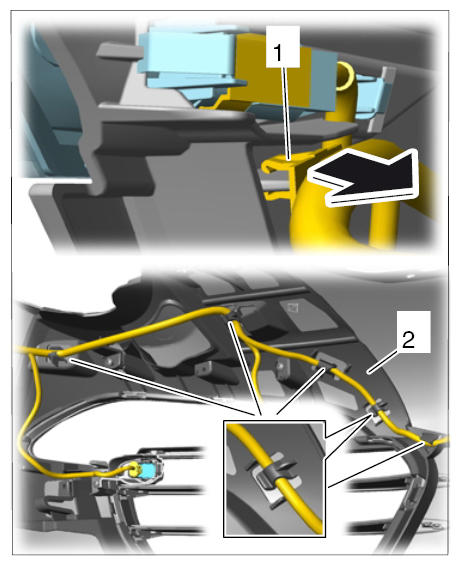

4. Loosen fastening clamp -1-  (-arrow-  ).
   Fig 5: Removing Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Disengage wire harness at the air grille -2-  .
