Installing Front Wire Harness

The procedure for installing the front wire harness at the left is described here.

1. Position and engage wire harness on the air grille -2-  .

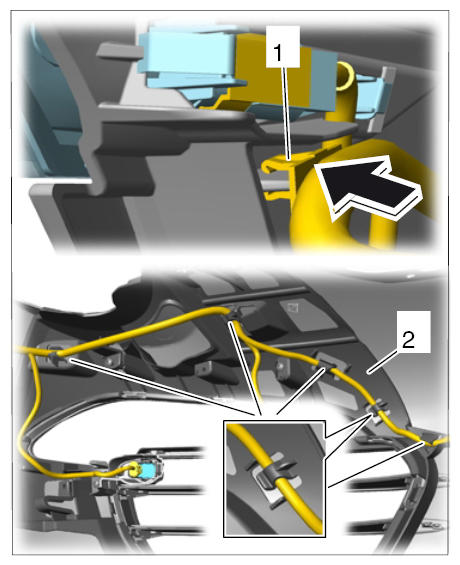

   Fig 1: Securing Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Secure the wire harness with the fastening clamp -1-  (-arrow-  ).
3. Vehicles with Kessy:  Plug in plug connection for proximity sensor -arrow-  until the lock locks.

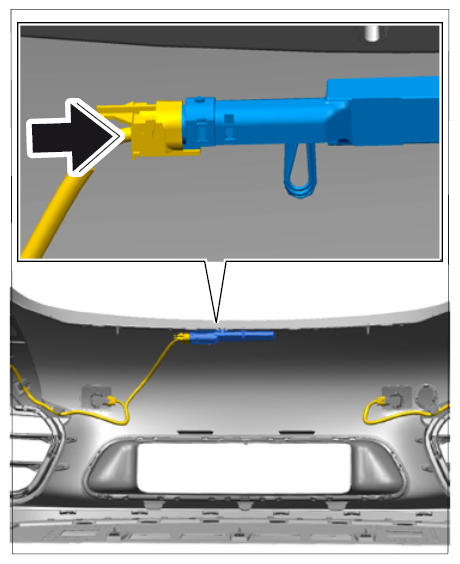

   Fig 2: Connecting Connector For Proximity Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Plug in plug connections for the ParkAssist sensors -arrows-  until they engage securely.
   Fig 3: Connecting Connectors For Parkassist Sensors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Plug in plug connection on the side direction indicator light -arrow-  until the connector engages securely.

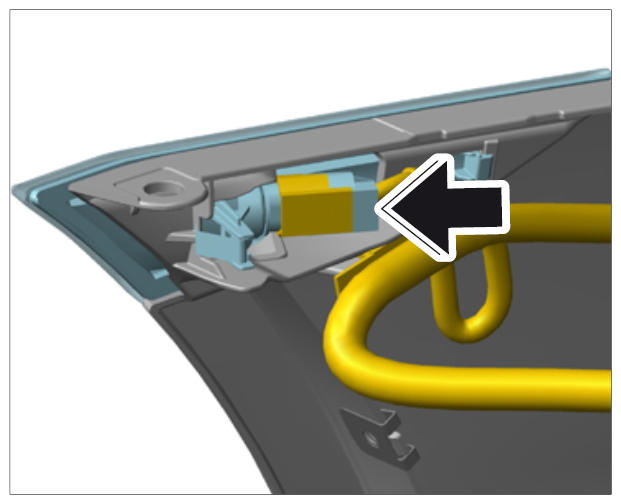

   Fig 4: Identifying Connector For Direction Indicator Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
