Removing Sub-Part For Tail Light

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

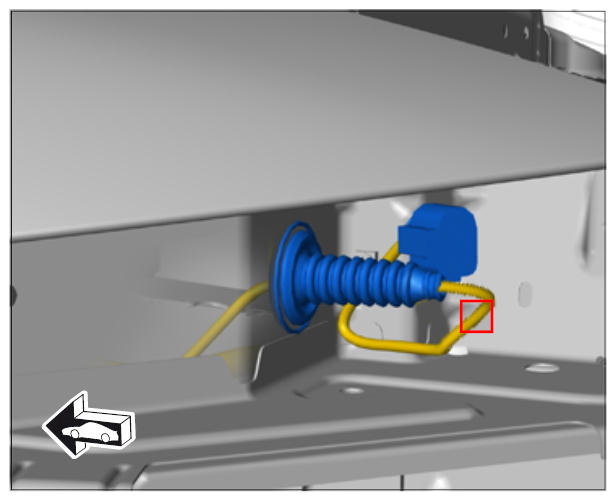

  Fig 1: Identifying Sub-Part For Tail Light Installation Position

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove rubber sleeve -1-  on the rear center piece and press it inwards -A-  .

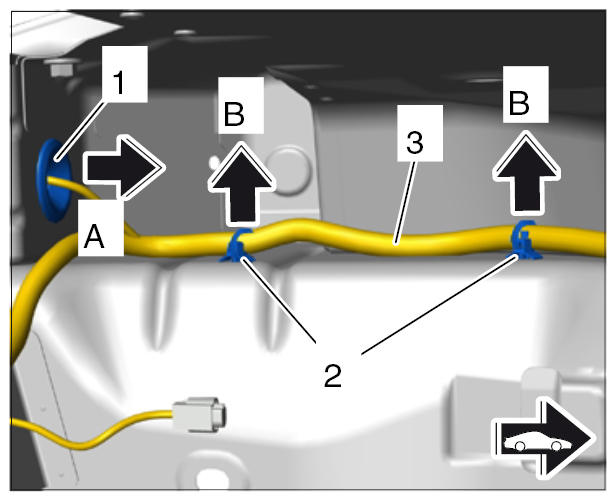

   Fig 2: Removing Sub-Part For Tail Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unclip retaining clips -2-  on the body -B-  .
3. Remove retaining clips -2-  from the wire harness -3-  .
4. Cut and pull off insulation -1-  on the wire harness.

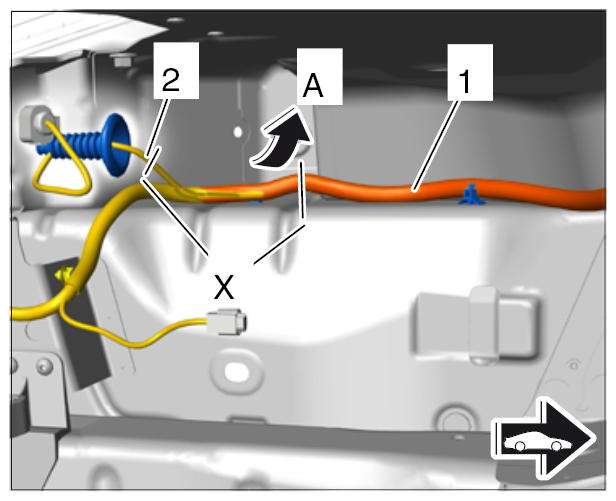

   Fig 3: Removing Sub-Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove sub-part -2-  from the insulation -1-  (-A-  ).
6. Cut off sub-part -2-  in area -X-  .
7. Remove sub-part -2-  .
