Removing Sub-Part For Rear Right Wheel Housing (TPM)

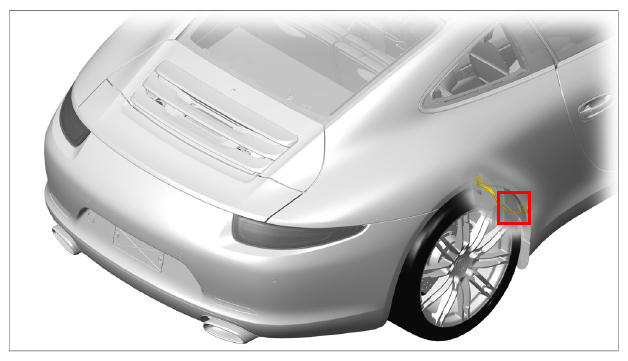

Fig 1: Identifying Sub-Part For Rear Right Wheel Housing (TPM) Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Release and pull off electric plug connection -1-  on the TPM control unit.

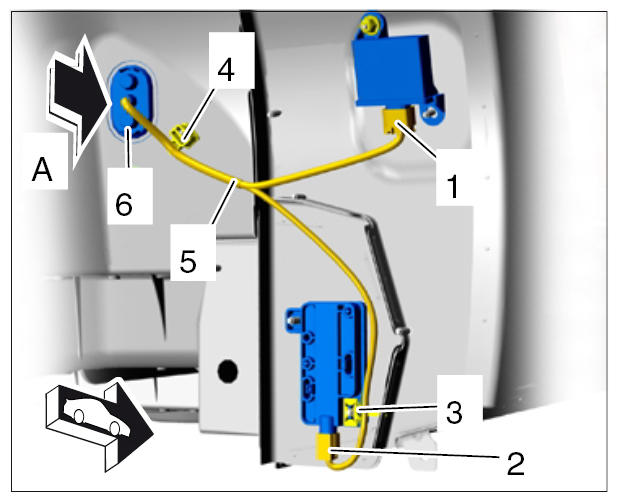

   Fig 2: Releasing Electric Plug Connection On TPM Control Unit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release and pull off electric plug connection -2-  on the antenna for KESSY.
3. Unclip retaining clip -3-  on the antenna for KESSY.
4. Unclip retaining clip -4-  on the body and detach from the wire harness -5-  .
5. Detach rubber sleeve -6-  from the body and press it into the interior of the vehicle -A-  .
6. Unclip tie-wrap -3-  from the body.

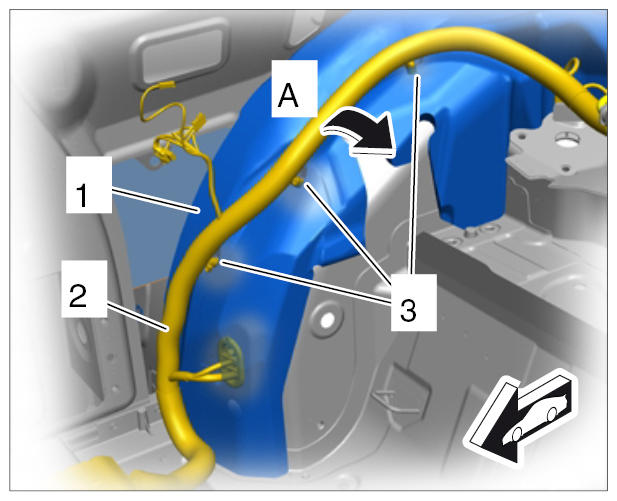

   Fig 3: Disconnecting Wire Harness In Passenger Compartment

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Set wire harness -2-  aside -A-  .
8. Remove sound absorber -1-  .
9. Move rubber sleeve -1-  to the connector for the sub-part -2-  .

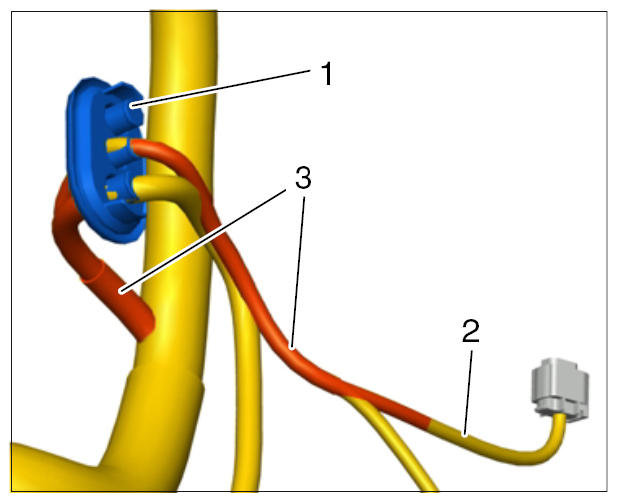

   Fig 4: Identifying Rubber Sleeve To Connector For Sub-Part

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Remove insulation -3-  on the sub-part -2-  .
11. Release sub-part -1-  from the wire harness for the TPM control unit.

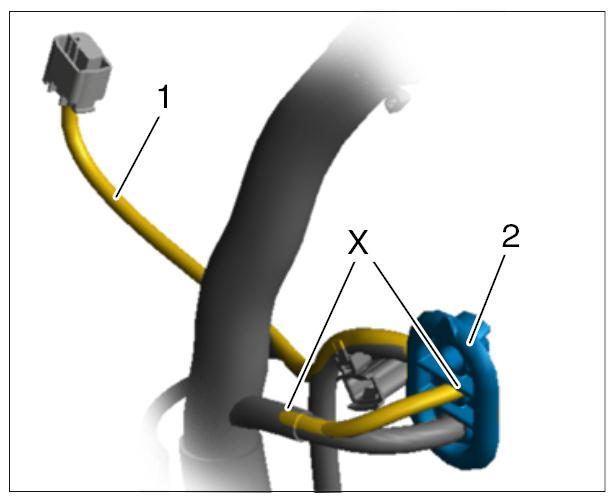

    Fig 5: Identifying Sub-Part From Wire Harness For TPM Control Unit

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Cut off sub-part -1-  in area -X-  and remove sub-part -1-  and rubber sleeve -2-  .
