Removing Sub-Part For Front Fan

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

Select a place for the joint where there is enough space to join all the lines present.

Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in the area of the joint.

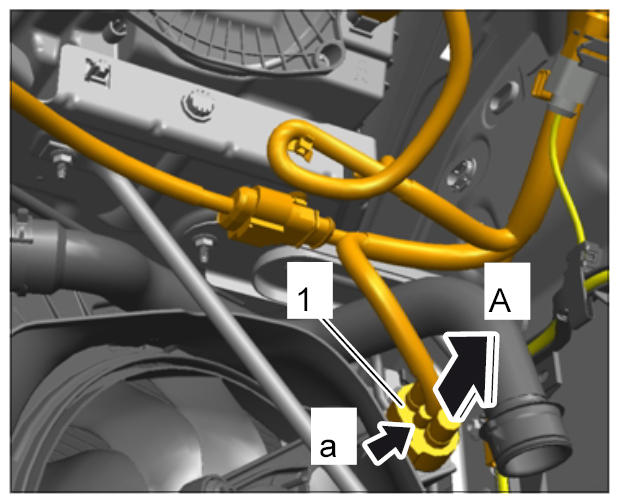

1. Release electric plug connection -1-  at the connection point for the fan -a-  and disconnect it -A-  .
   Fig 1: Releasing Electric Plug Connection At Connection Point For Fan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

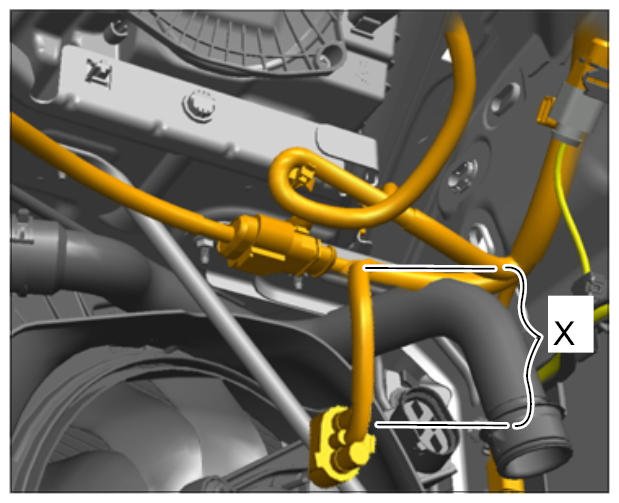

2. Expose wire harness for front fan in the area marked -X-  .
   Fig 2: Identifying Exposing Wire Harness Marked Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

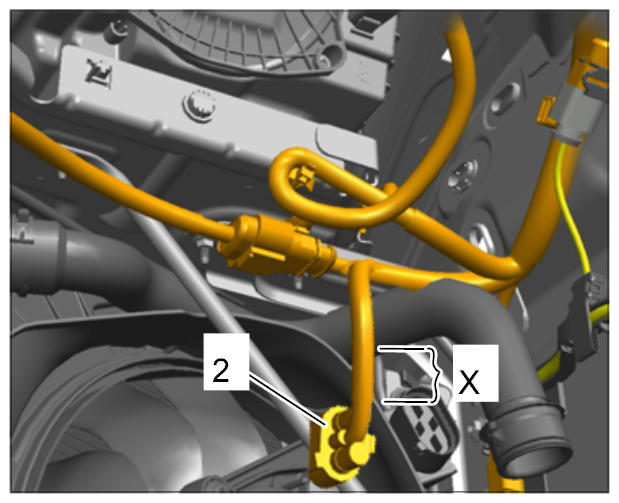

3. Cut wire harness for front fan in the area marked -X-  .
   Fig 3: Identifying Cutting Wire Harness Marked Area For Fan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove the wire harness you have just cut off.
