Removing Front Left Sub-Part

Information

The connector size and chamber assignment can vary depending on vehicle equipment.

1. Release electric plug connection -1-  (-a-  ) and disconnect it -A-  . Unclip electric plug connection -1-  from the bracket -3-  .

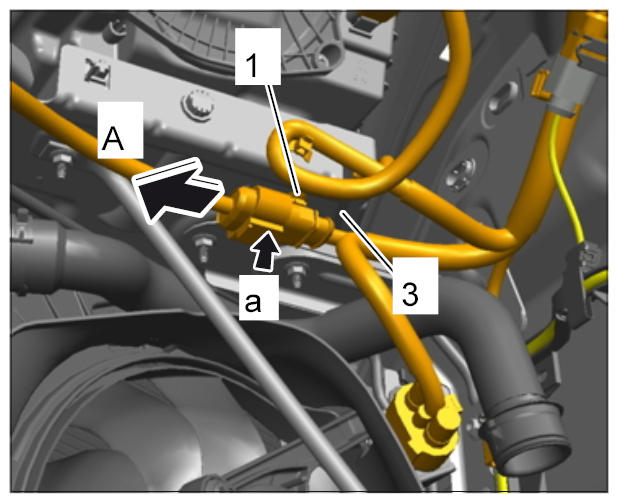

   Fig 1: Disconnecting Electric Plug Connection From Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Expose wire harness in the marked area -X-  .

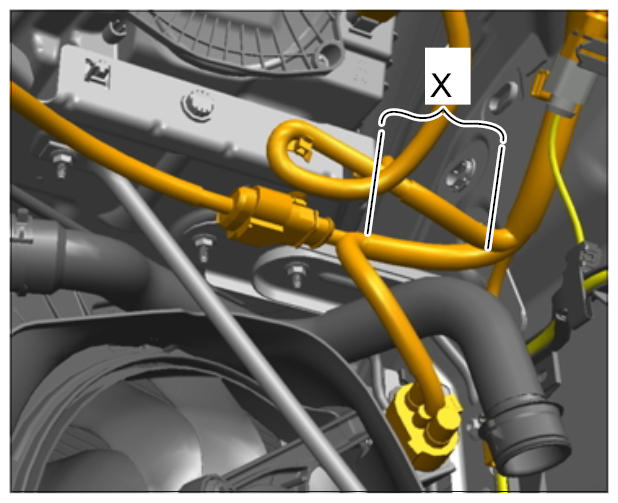

   Fig 2: Identifying Exposing Wire Harness Marked Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Cut wire harness in the marked area -X-  .

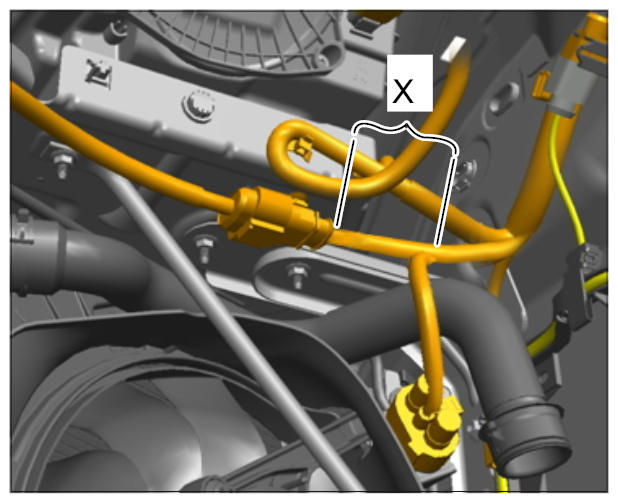

   Fig 3: Identifying Cutting Wire Harness Marked Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove the line you have just cut off.
