97 - Cables -- 911 CARRERA (991)
>>
WM 970955 Replacing Front Left Sub-Part (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition", Gt3, Gt3 RS)
>>
Component Information
Component Information

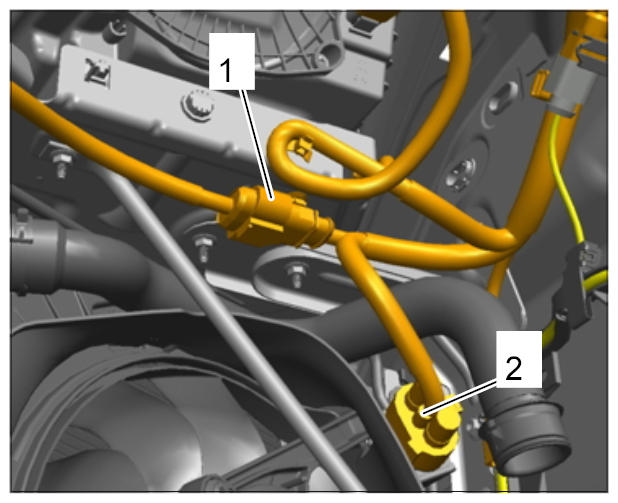

Fig 1: Identifying Left Sub-Parts Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front connection point to front apron, left
Connection point for fan, front left
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
