On Vehicles With Porsche Doppelkupplung (PDK)

4. Disconnect sub-part for PDK transmission. → 970955 REPLACING SUB-PART FOR PDK TRANSMISSION
5. Disconnect main wire harness for rear lid.

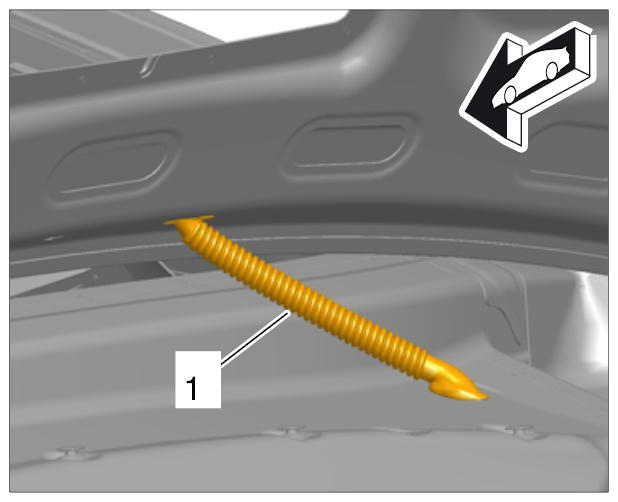

Fig 1: Identifying Main Wire Harness On Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Disconnect plug connection for SDARS antenna. → 913819 REMOVING AND INSTALLING SDARS ANTENNA
2. 5.2. Remove rubber sleeve -1- .
3. 5.3. Pull main wire harness at the rear lid into the body.
6. Remove main wire harness.
1. 6.1. Make sure that all electric plug connections are released and unplugged.
2. 6.2. Make sure that all brackets are unclipped and released.
3. 6.3. Pull all sub-parts into the passenger compartment and remove main wire harness.
