On Vehicles With Manual Transmission

3. Disconnect sub-part for transmission.
1. 3.1. Unclip fixing clips -1- in the passenger compartment.

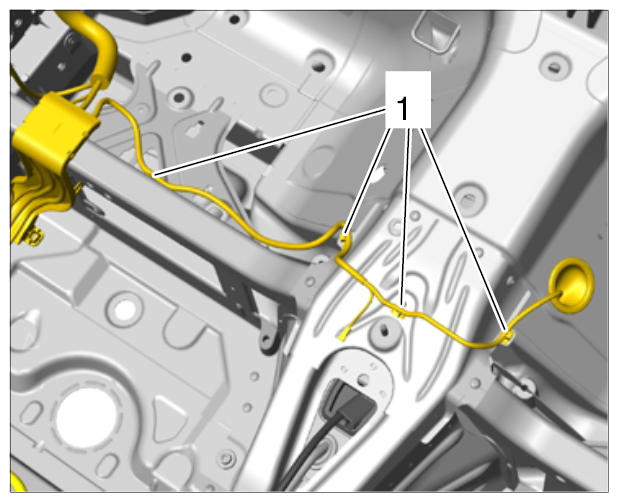

  Fig 1: Identifying Passenger Compartment Fixing Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Remove rubber sleeve -1- from the body aperture.

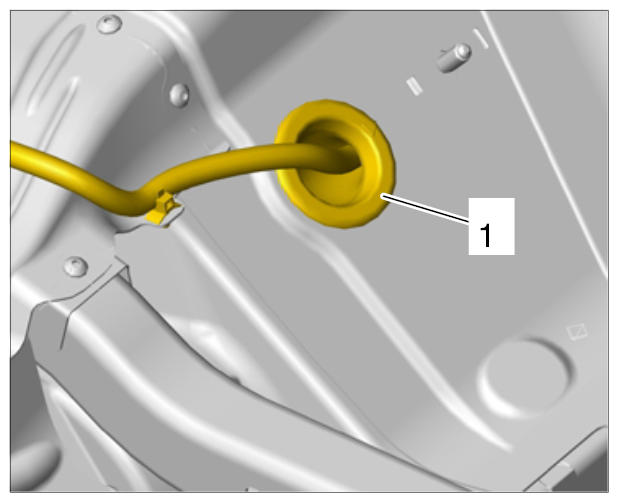

  Fig 2: Identifying Rubber Sleeve From Body Aperture
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Unclip fixing clips -1- on the transmission.

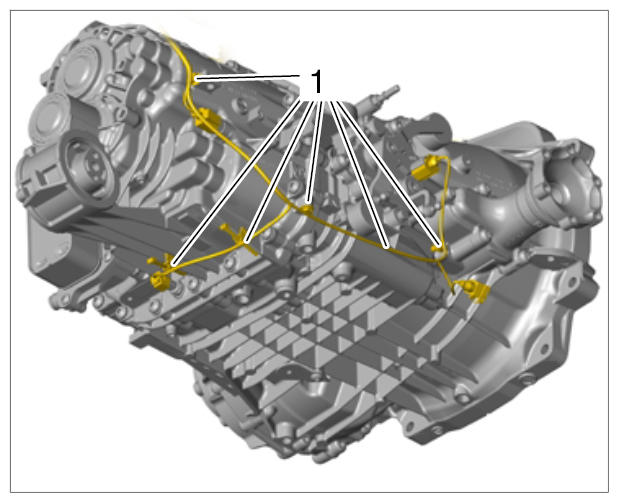

  Fig 3: Identifying Fixing Clips On Transmission
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Release and pull off plug connection -1- .

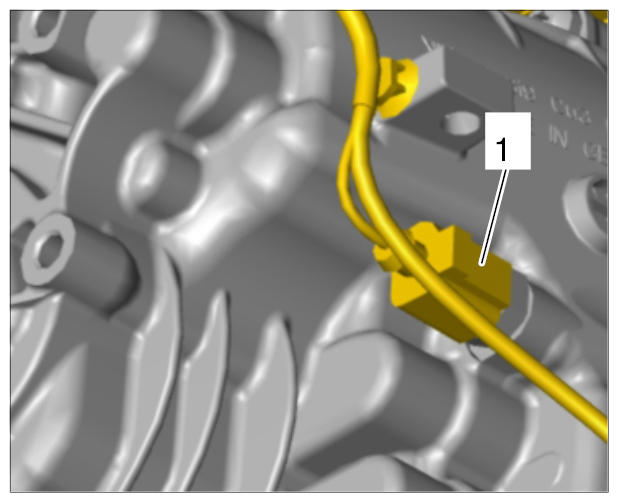

  Fig 4: Identifying Transmission Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 3.5. Release and pull off plug connection for temperature sensor.

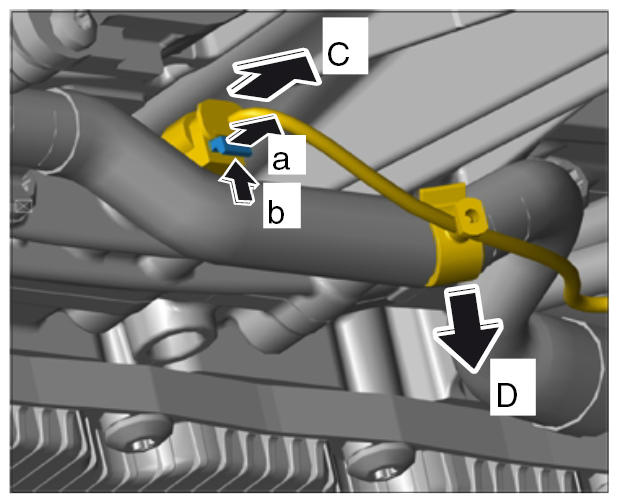

  Fig 5: Disconnecting Temperature Sensor And Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 3.5.1. Pull out lock on plug connection for temperature sensor -a- .
  2. 3.5.2. Release the plug connection -b- and pull it off -C- .
  3. 3.5.3. Unclip wire harness -D- .
6. 3.6. Release and pull off plug connection for change-over valve for disc valve.

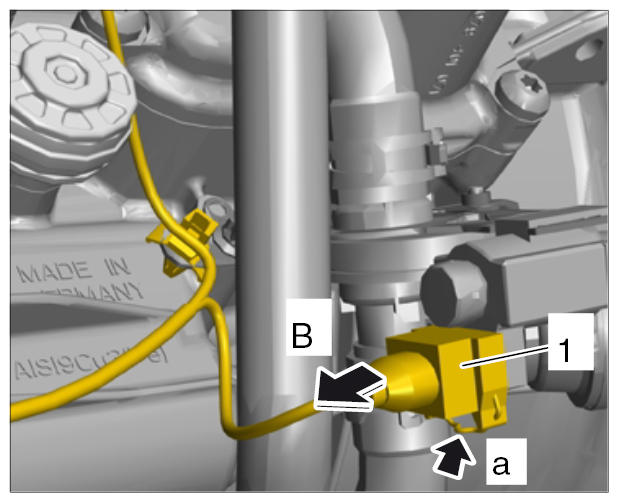

  Fig 6: Removing Plug Connection For Disc Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 3.6.1. Release plug connection -1- for change-over valve for disc valve -a- and pull it off -B- .
7. 3.7. Release plug connection -1- (-a- ) and pull it off -B- .

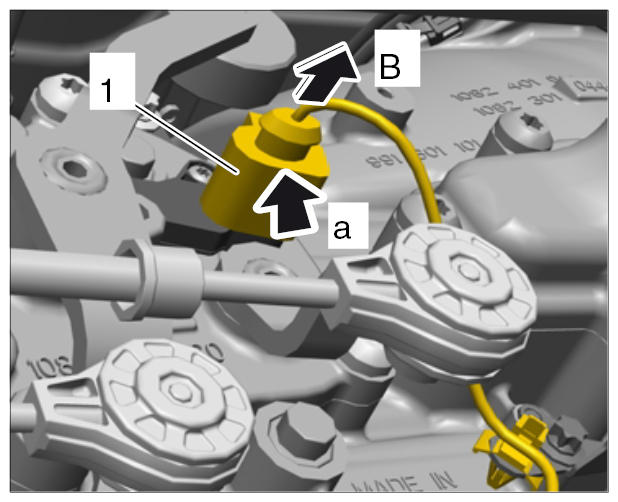

  Fig 7: Releasing Plug Connection For Change-Over Valve And Disc Valve
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. 3.8. Pull sub-part for transmission into the passenger compartment.
