Removing Main Wire Harness: Notes

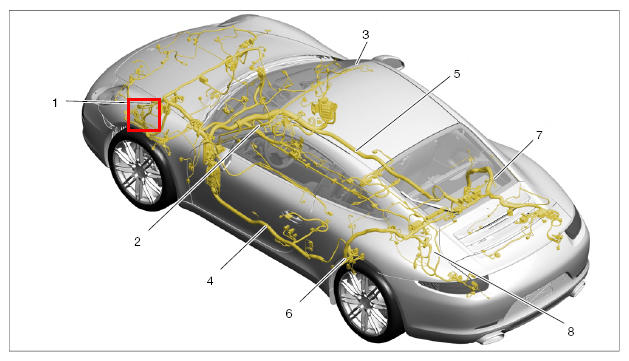

Fig 1: Identifying Main Wire Harness Installation Position
G09999549Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Main wire harness in front-end
  2. Main wire harness in left roof pillar area
  3. Main wire harness in right roof pillar area
  4. Main wire harness in passenger compartment, left
  5. Main wire harness in passenger compartment, right
  6. Sub-part in rear left wheel housing, TPM
  7. Sub-part in rear right wheel housing, TPM
  8. Main wire harness in engine compartment
  1. Loosen feed-through element in firewall.

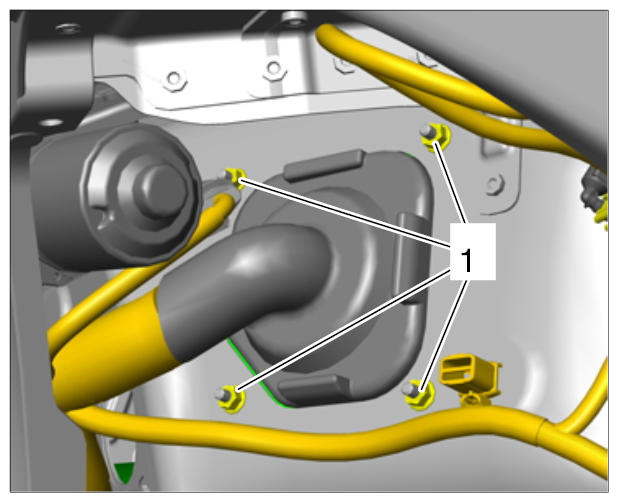

    Fig 2: Identifying Feed-Through Element Nuts In Firewall
    G09999550Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Unscrew fastening nuts -1-  .
  2. Disconnect main wire harness on the firewall and on the tunnel.

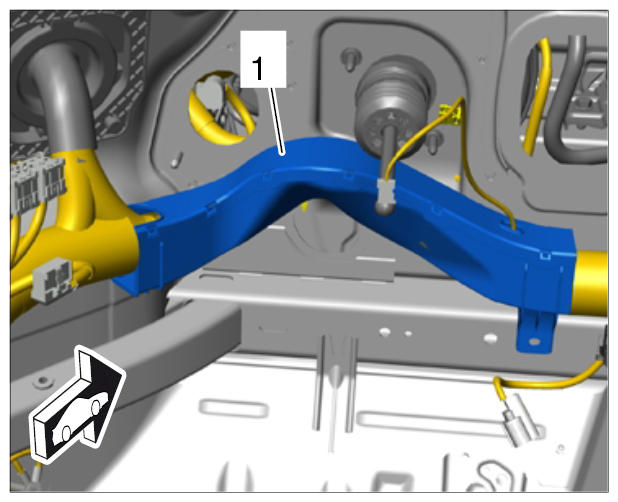

    Fig 3: Identifying Main Wire Harness On Firewall And Tunnel
    G09999551Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Open the cable duct -1-  .
    2. 2.2. Remove wire harness from the cable duct.
    3. 2.3. Unclip fixing clips -1-  .

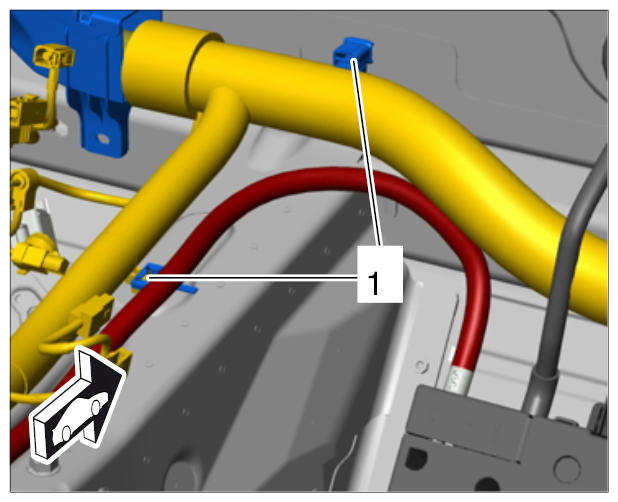

      Fig 4: Identifying Main Wire Harness Clips And Cable Duct On Firewall And Tunnel
      G09999552Courtesy of PORSCHE CARS NORTH AMERICA, INC.
