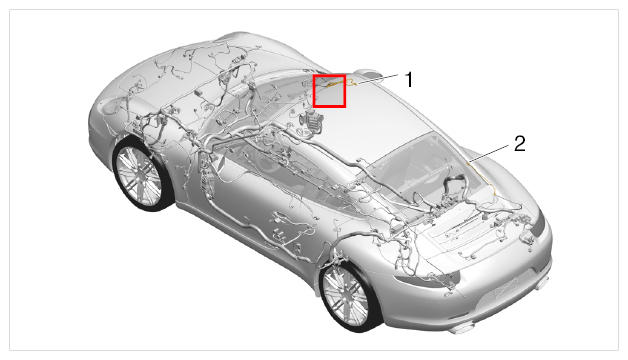

Loosening Main Wire Harness In Right Roof Pillar Area
- Plug connections for right antenna amplifier (4 connectors)
- Plug connection for heated rear window
NOTE:
Incorrect handling of main wire harness
- Risk of damage to lines
→ The main wire harness contains all airbag lines, antenna lines and optical waveguides.
→ The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
→ If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- Never touch the electric pins and plug contacts.

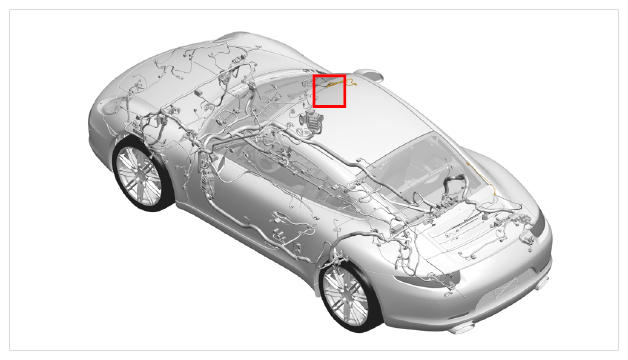

A-pillar area
- Disconnect plug connections for right antenna amplifier. → 918419 REMOVING AND INSTALLING ANTENNA AMPLIFIER
C-pillar area
- Loosen mounting for main wire harness in C-pillar area.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

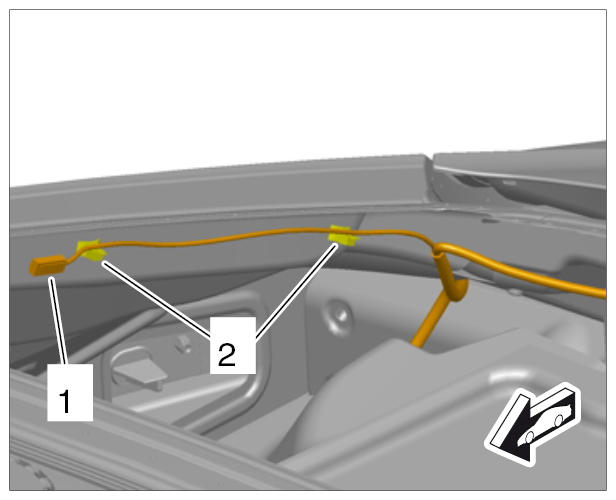

- 2.1. Pull off plug connection -1- for heated rear window.
- 2.2. Unclip fixing clips -2- at the side of the C-pillar, check for damage and replace them if necessary.
