Securing Main Wire Harness In Luggage Compartment At The Right

Pull the main wire harness through the opening in the plenum panel, engage it loosely and check that it is positioned correctly.
Fit fastening points in luggage compartment at the right.

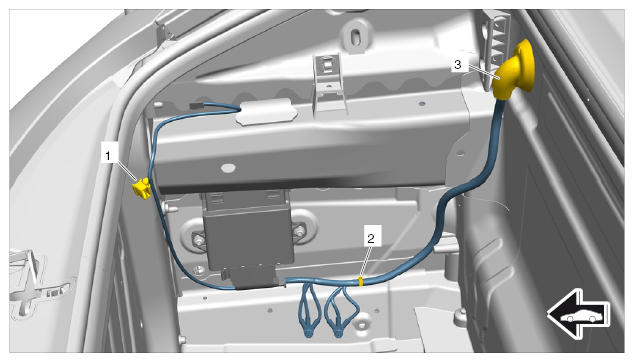

Fig 1: Identifying Main Wire Harness Fastening Points (Luggage Compartment) - Right
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Fit rubber sleeve -3- for line to the plenum panel.
2. 2.2. Secure fixing clip -2- on the longitudinal member.
3. 2.3. Secure cable holder -1- to the bolt on the body.

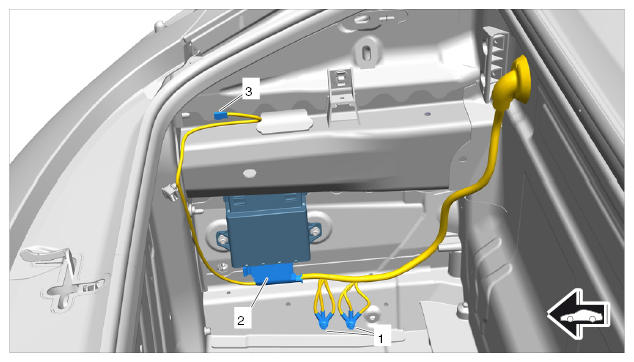

  Fig 2: Identifying Main Wire Harness Connectors (Luggage Compartment) - Right
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Connector for voltage transformer for Start/Stop
  2. Connector for luggage compartment emergency release
  3. Ground points on floor front section
Screw on fastening nuts at the ground points -1- on the floor front section. → Tightening torque: 10 Nm (7.5 ftlb.)
Plug in and lock electric plug connection for voltage transformer for Start/Stop -2- . → Installing Voltage Transformer For Start/Stop
