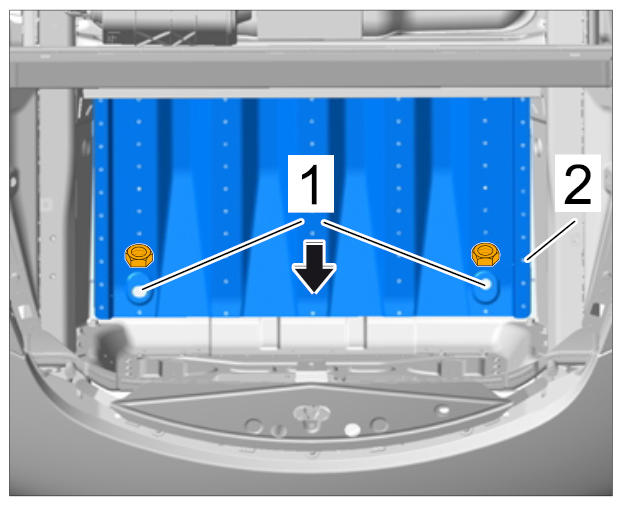

Installing Crash Element In Front Luggage Compartment Floor
- Insert crash element -2-
into the luggage compartment floor -arrow-
and secure with the fastening nuts -1-
. → Tightening torque: 9.7 Nm (7.5 ftlb.)
