Removing Crash Element In Front Luggage Compartment Floor

Information

Damaged or deformed body parts can impair torsional rigidity, flexional resistance and crash safety. Body parts can no longer be reshaped. Straightening and reshaping is not permitted. If a body part is damaged or deformed, it must be replaced.

  1. Unscrew fastening nuts -1-  and remove crash element -2-  (-arrow-  ).

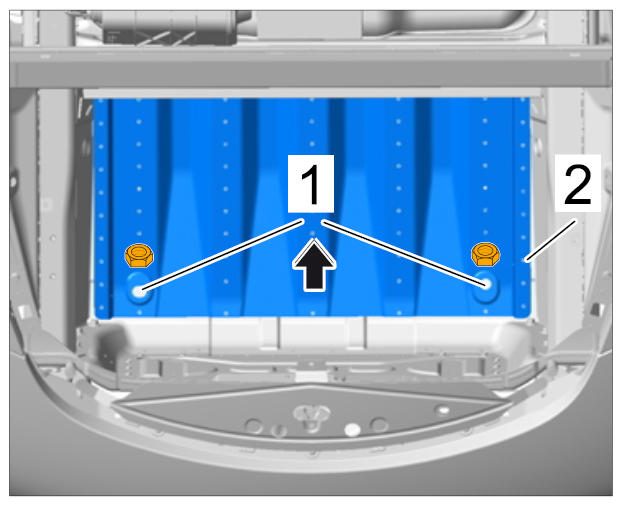

    Fig 1: Removing Crash Element
    G09999527Courtesy of PORSCHE CARS NORTH AMERICA, INC.
