Removing Wire Harness For Dashboard

Information

The number of plug connections can vary, depending on equipment.

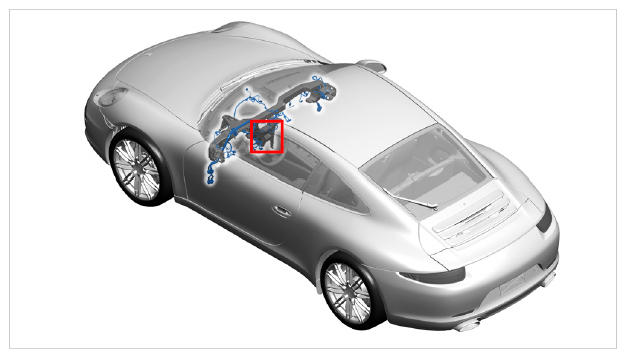

Fig 1: Identifying Installation Position Of Wire Harness For Dashboard

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect plug connections for wire harness for dashboard.
1. 1.1. Disconnect plug connection for dashboard at connection point on left A-pillar.

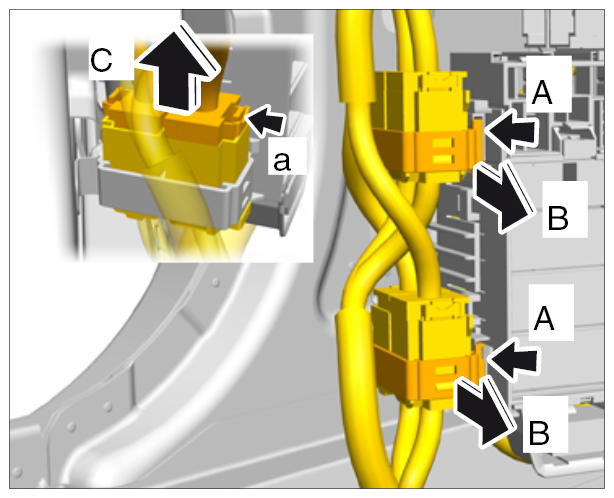

  Fig 2: Disconnecting Plug Connections For Dashboard Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.1.1. Release plug connections at the left fuse box -A- and remove them -B- .
  2. 1.1.2. Release plug connections -a- and pull them off -C- .
2. 1.2. Disconnect plug connection for dashboard at connection point on right A-pillar.

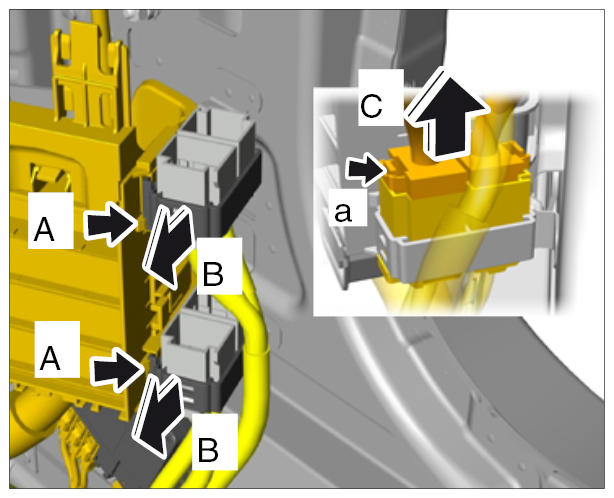

  Fig 3: Disconnecting Plug Connection For Dashboard And Door Connection Point
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.2.1. Release plug connections at the left fuse box -A- and remove them -B- .
  2. 1.2.2. Release plug connections for the dashboard wire harness -a- and pull them off -C- .
3. 1.3. Disconnect plug connection for blower power supply.

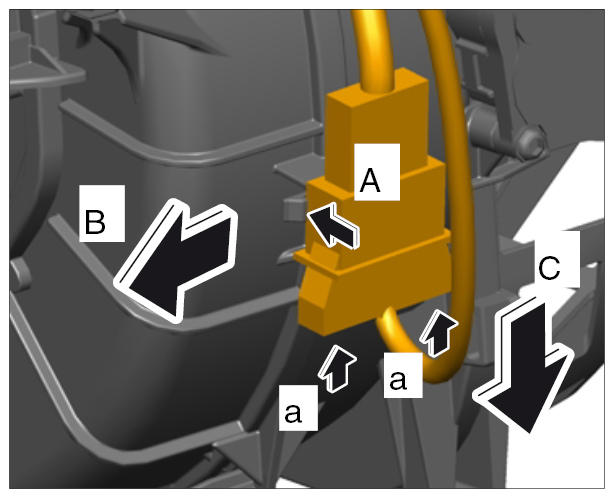

  Fig 4: Disconnecting Plug Connection For Blower Power Supply
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.3.1. Release plug connection -A- and disconnect it -B- from the heating/fresh-air unit.
  2. 1.3.2. Release plug connection at the two locking lugs -a- and pull it off -C- .
Loosen mounting for wire harness for dashboard.

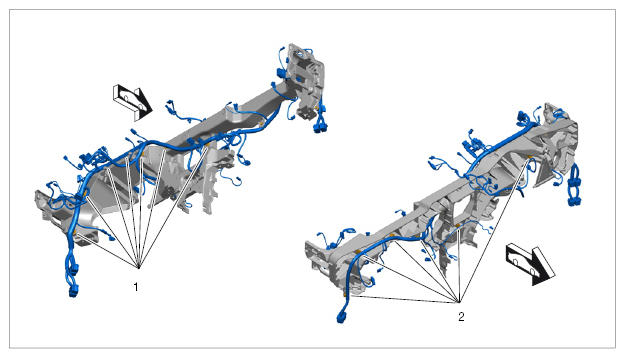

Fig 5: Identifying Wire Harness Mounting For Dashboard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Loosen fixing clips -1- on the front of the dashboard bracket.
2. 2.2. Loosen fixing clips -2- on the back of the dashboard bracket.
3. 2.3. Unclip fixing clips -1- for wire harness at the heating/fresh-air unit.

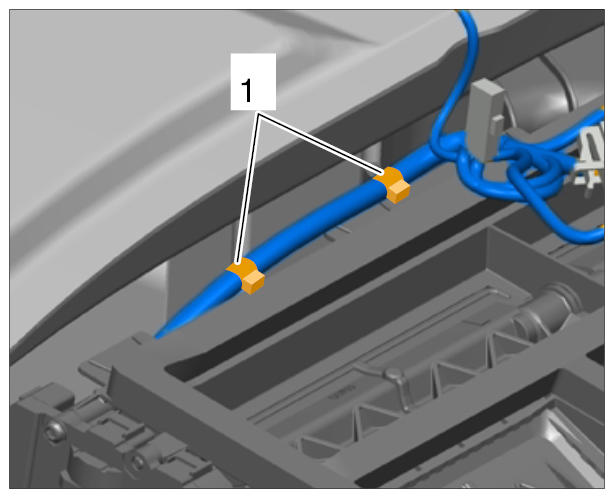

  Fig 6: Identifying Fixing Clips For Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Make sure that all brackets are unclipped and released.
Remove wire harness from the bracket.
