Removing Reservoir For Windshield Washer System

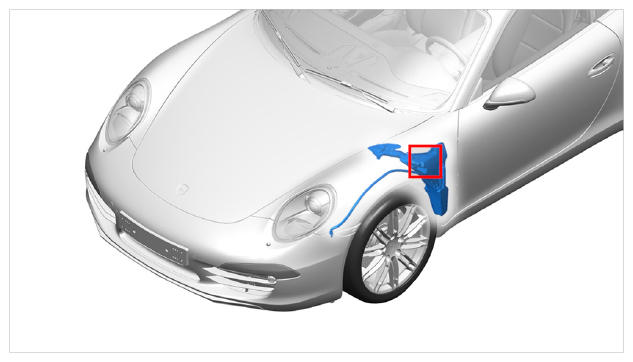

Fig 1: Identifying Windshield Washer Reservoir Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Collect windshield washer system fluid in a suitable container.

1. Pull water pipe off the connection on the pump for the headlight cleaning system. → 927819 REMOVING AND INSTALLING PUMP FOR HEADLIGHT CLEANING SYSTEM  - section on "Removing"
2. Collect any emerging fluid in a suitable container.

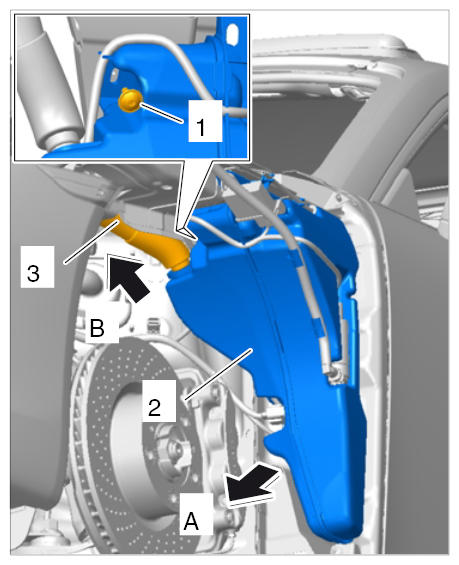

3. Unscrew fastening screw -1-  and pull the reservoir -2-  out of the mounting on the A-pillar -arrow A-  .
4. Pull the filler tube -3-  out of the reservoir -2-  (-arrow B-  ).
Fig 2: Removing Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Release water connection for the windshield washer spray nozzles and pull it apart. → 552219 REMOVING AND INSTALLING FRONT LID - section on "Removing"

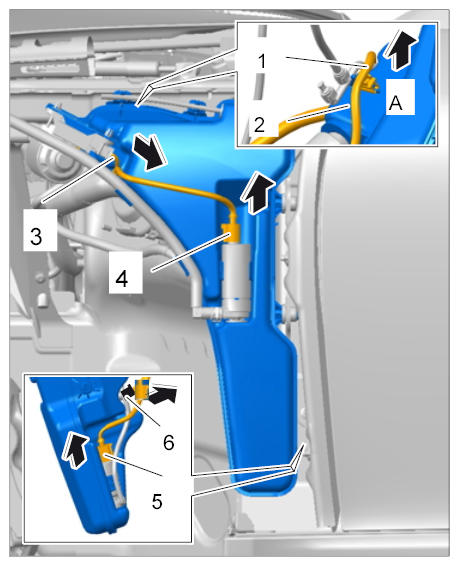

6. Pull off wire harness -1-  at the reservoir -2-  (-arrow A-  ).
7. Release electric plug connections -3, 4, 5, 6-  and pull them off -arrows-  .
Fig 3: Removing Electric Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
