Removing Wiper Arm

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Information

To counteract the deformation of the wiper rubber that occurs when it is at rest, the wiper arm is alternately moved to two different parked positions. However, the wiper arm may only be removed and installed in the lower parked position. Before removing or installing the wiper arm, operate the wiper once and watch whether the wiper is moved up again slightly into the upper parked position after it has reached the lower parked position. In this case, operate the wiper again so that the wiper arm is moved into the lower parked position.

1. Switch off ignition and remove remote control.
2. Open the front lid.
3. Loosen mounting for wiper arm.

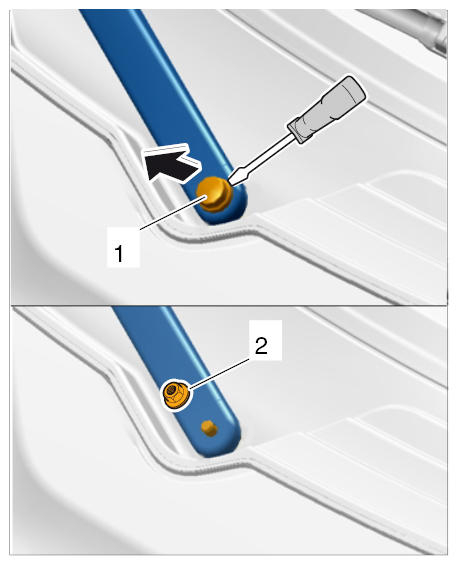

   Fig 1: Loosening Wiper Arm Mounting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • 3.1. Remove cap -1-  using a screwdriver -arrow-  .
   • 3.2. Screw off fastening nut -2-  .
4. Press the wiper arm down at the joint and pull it off the wiper linkage axle.
