Installing Wiper Arm

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Information

To counteract the deformation of the wiper rubber that occurs when it is at rest, the wiper arm is alternately moved to two different parked positions. However, the wiper arm may only be removed and installed in the lower parked position. Before removing or installing the wiper arm, operate the wiper once and watch whether the wiper is moved up again slightly into the upper parked position after it has reached the lower parked position. In this case, operate the wiper again so that the wiper arm is moved into the lower parked position.

1. Switch off ignition and remove remote control.
2. Fit the wiper arm on the wiper linkage.
3. Adjust the dimension -a-  for the wiper arm on the driver's side -1-  .
4. Adjust the dimension -a-  for the wiper arm on the passenger's side -2-  .

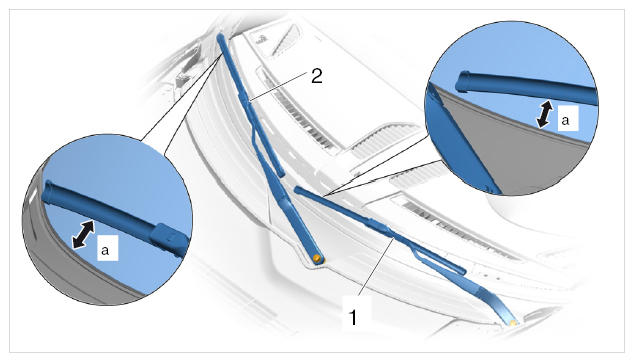

   Fig 1: Adjusting Wiper Arm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Driver's Side	Passenger's Side
   -a-	-a-
   10 mm	10 mm

5. Secure the wiper arm.
   • 5.1. Hold the wiper arm by pressing lightly on the cone -arrow-  and fit the fastening nut -2-  .
   • 5.2. Tighten fastening nut to the specified tightening torque → Tightening torque: 18 Nm (13 ft. lbs.)  .
   • 5.3. Press on the cap -1-  until it engages securely.

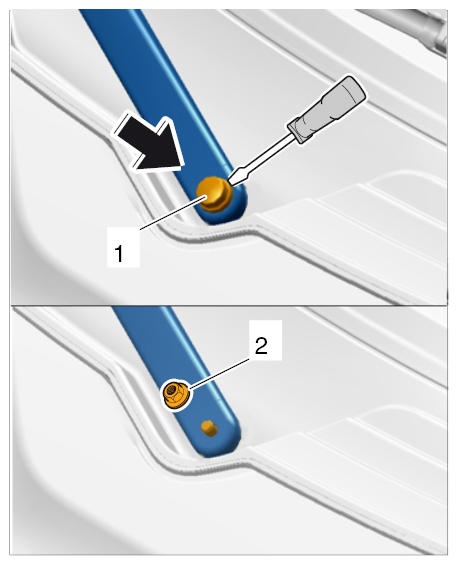

   Fig 2: Securing Wiper Arm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Actuate the wiper motor until it comes to a stop and then check the position of the wiper arm again.
