Adjusting Rear Side Window

  1. Adjustment, door window offset with respect to side window.
    1. 1.1. By turning the guide pins -1-  , you can change the setting in the Y-axis.

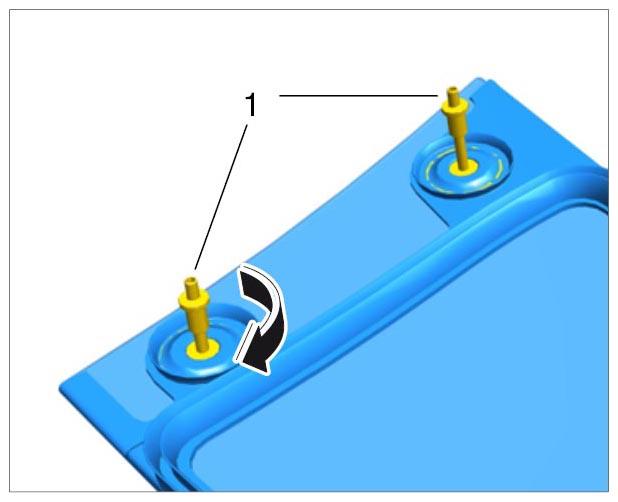

      Fig 1: Identifying Guide Pins
      G09994868Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Adjust gap -A-  for door window -1-  with respect to the side window -2-  in the X-axis. Gap between door window and side window
  3. Adjust offset -B-  for door window -1-  with respect to the side window -2-  . Offset for door window/side window

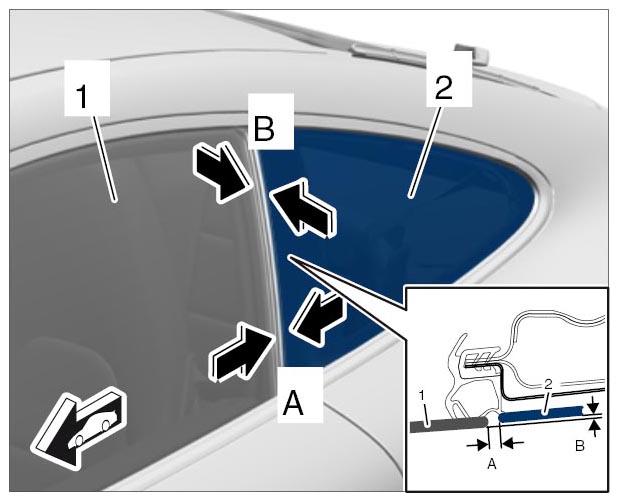

    Fig 2: Adjusting Gap/Offset For Door Window/Side Window
    G09994869Courtesy of PORSCHE CARS NORTH AMERICA, INC.
