Installing Rear Window Channel Seal

Information

• Check that the seal is seated exactly at the correct position.
• Check gap and joint dimensions.

1. Position the guiding groove -1-  of the seal at marking -2-  on the mounting plate and press it in.

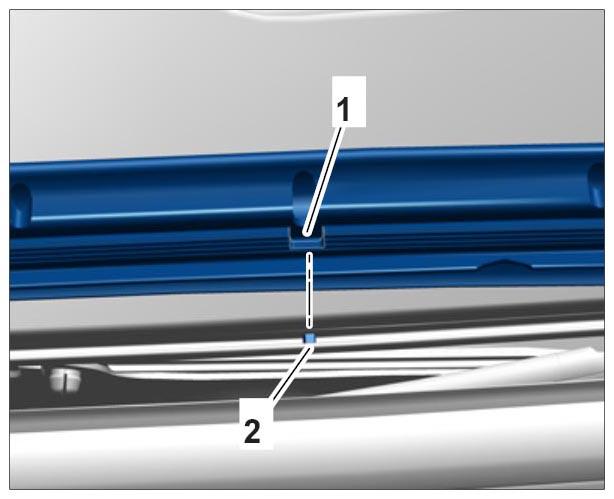

   Fig 1: Identifying Window Channel Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Installation is performed in reverse order to removal.
