Removing Rear Window Channel Seal

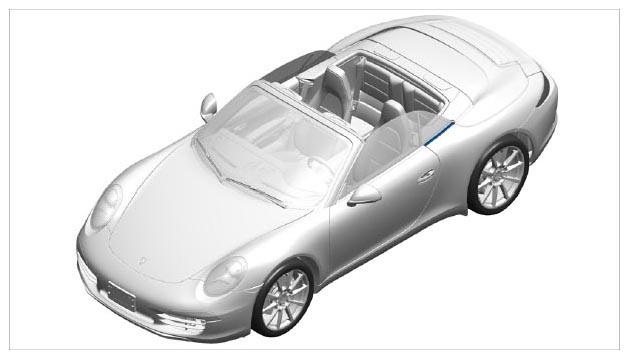

Fig 1: Identifying Rear Window Channel Seal
G09994840Courtesy of PORSCHE CARS NORTH AMERICA, INC.

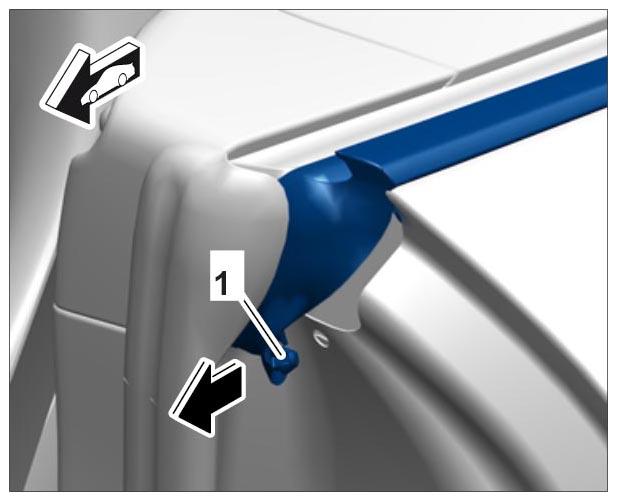

  1. Unclip the pin -1-  from the mounting in the side panel.
    Fig 2: Removing Pin From Side Panel Mounting
    G09994841Courtesy of PORSCHE CARS NORTH AMERICA, INC.

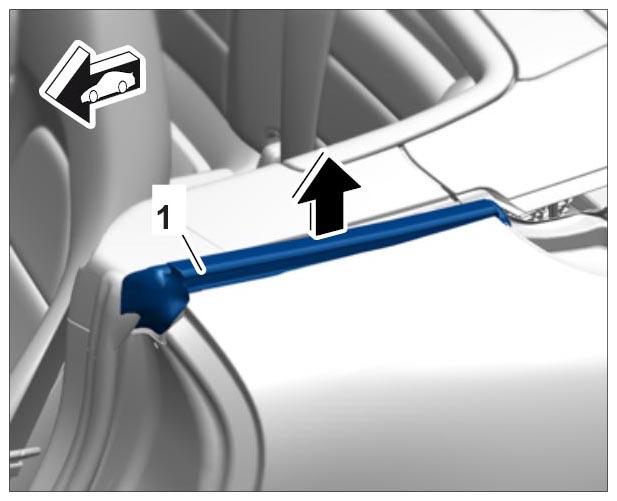

  2. Pull the window channel seal -1-  up out of the guide.
    Fig 3: Removing Window Channel Seal
    G09994842Courtesy of PORSCHE CARS NORTH AMERICA, INC.
