Removing Front Power Windows

Information

• Do not turn adjusting screws -1- during the fitting procedure.
• The adjusting screws -1- on the power windows spare part are preset.

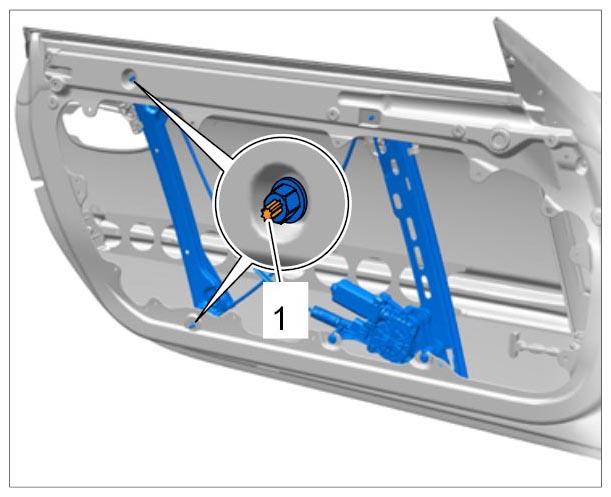

  Fig 1: Identifying Adjusting Screw On Power Windows

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

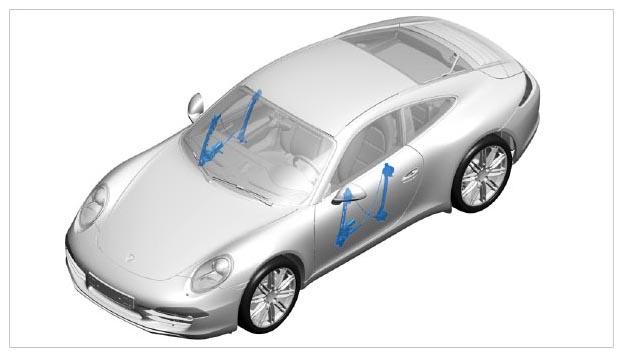

  Fig 2: Identifying Power Windows

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Screw off fastening nuts.

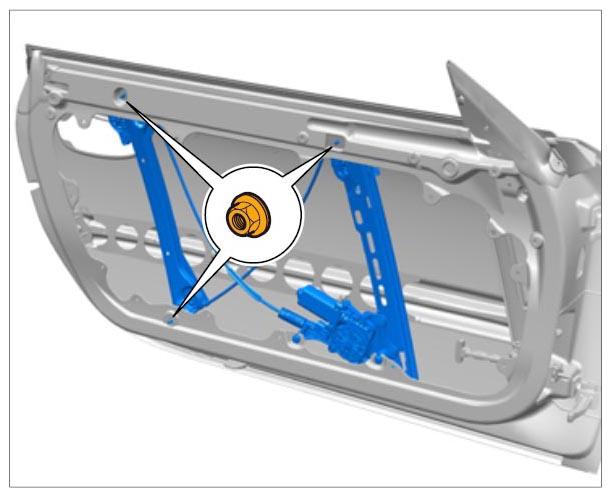

   Fig 3: Identifying Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen fastening screws for power window motor -arrows-  .

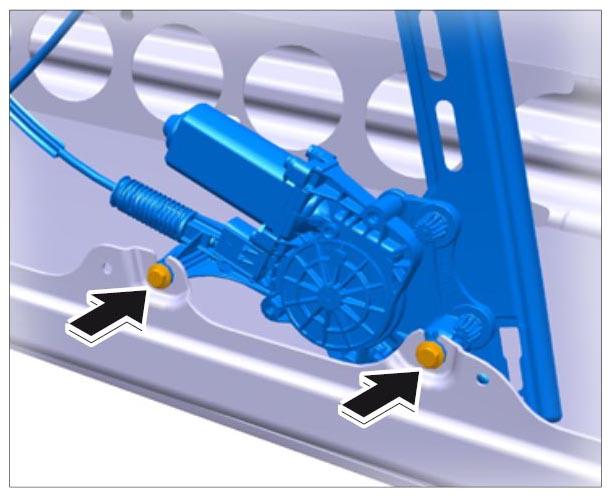

   Fig 4: Locating Fastening Screws For Power Window Motor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove power windows unit through the door opening.
