Installing Front Power Windows

Fit power windows unit in the door.

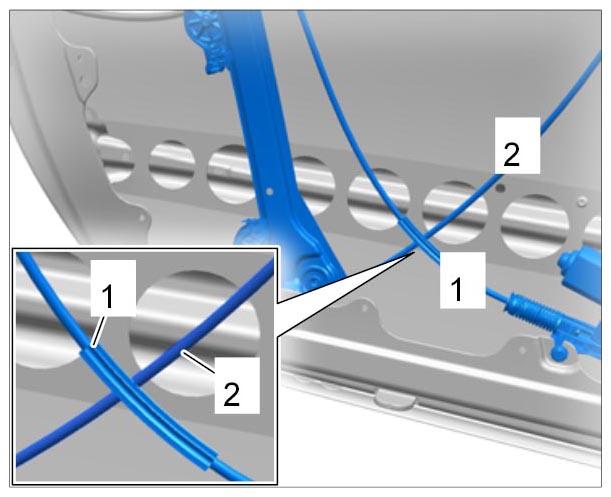

Make sure that the cables are arranged in the position shown. The cable guide with protection -1- must be positioned before the cable guide without protection -2- .

Fig 1: Identifying Front Power Windows Cable Routing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosely screw in fastening elements.

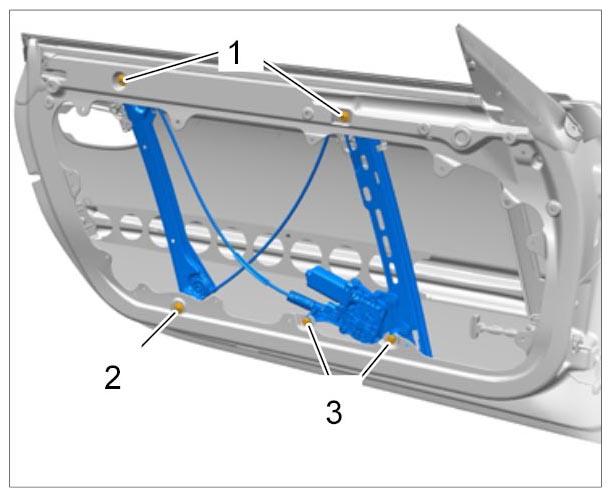

Tighten the fastening points in the sequence shown. Tightening torque

Fig 2: Front Power Windows Screw Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
