Removing Power-Window Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

The end positions of the power windows are deleted from the control unit when the electric plug connections are disconnected and connected.

1. Disconnect water drain hose -2-  from the water drip pan -1-  and set it aside.

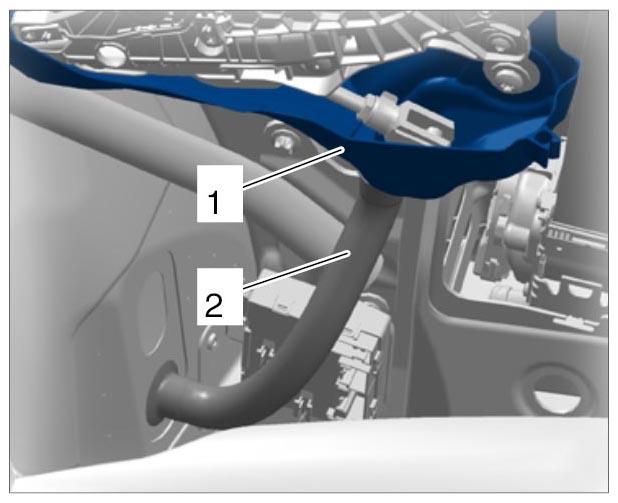

   Fig 1: Identifying Water Drain Hose From Water Drip Pan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove power-window control unit -1-  .
   1. 2.1. Release control unit -1-  at the rear -A-  .
   2. 2.2. Slide control unit -1-  back and disengage it at the front -B-  .

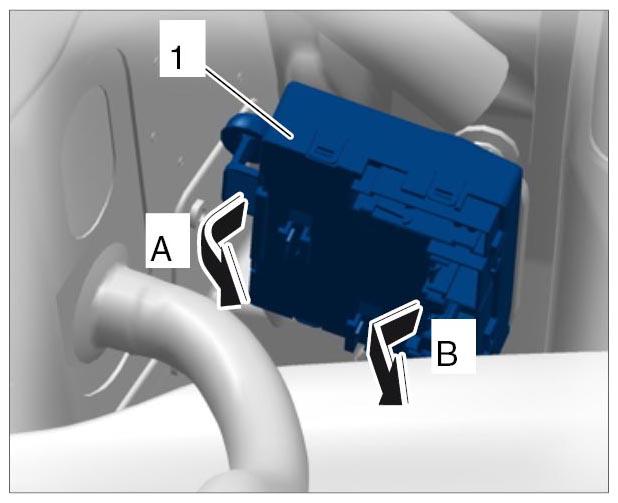

   Fig 2: Removing Power-Window Control Unit
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release and disconnect electric plug connection -2-  on the control unit -1-  .
   1. 3.1. Lift up securing clip -a-  .
   2. 3.2. Release plug connection -2-  (-b-  ) and disconnect it.
4. Release electric plug connection -3-  on the control unit -1-  (-c-  ) and disconnect it.

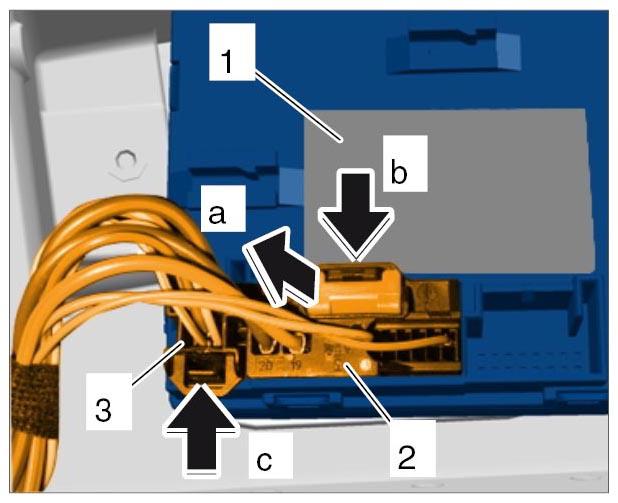

Fig 3: Disconnecting Plug Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
