Removing Front Window Channel Seal

  1. Open the front door window fully.
  2. Open doors.
  3. Detach window channel seal -1-  from the door panel flange using a plastic wedge, starting at the rear area -arrow A-  and continuing up to the cover on the mirror attachment point finisher -2-  .
  4. Pull rubber seal -3-  forward -arrow B-  and remove it.
  5. Carefully pull window channel seal -1-  out to the rear -arrow C-  and remove it.

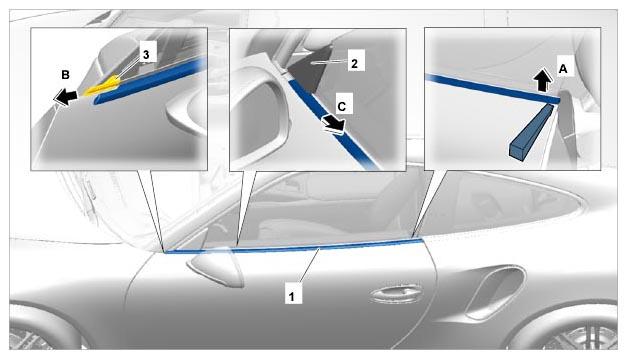

    Fig 1: Removing Window Channel Seal
    G09994816Courtesy of PORSCHE CARS NORTH AMERICA, INC.
