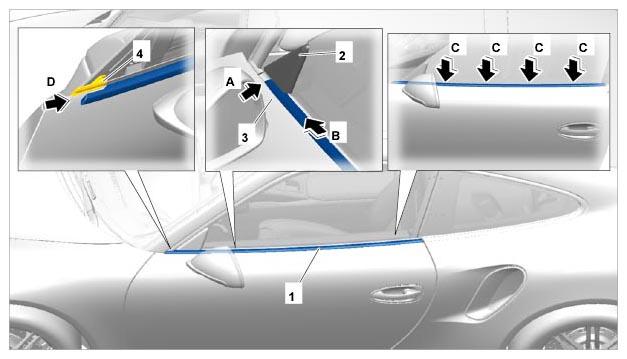

Installing Front Window Channel Seal
- Before installing the window channel seal -1-
, coat the front of the seal -arrow A-
with rubber lubricant.
- Fit the window channel seal -1-
on the door panel flange, starting at the front and push it in between the cover on the mirror attachment point finisher -2-
and door panel -3-
.
- Press the window channel seal -1-
onto the door panel flange along its entire length -arrows C-
.
- Push in rubber seal -4-
(-arrow D-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Close the front door window fully.
