Double Cartridge Press

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Do not smoke, eat or drink in the work area.

Information

• In addition to this information, observe the relevant job descriptions for installing car windows!

1. Prepare cartridge components A and B.
   1. 1.1. Pierce the membrane in the nozzle connection of components A and B (aluminum cartridge) -H5 & H6-  with a screwdriver and widen the opening.
   2. 1.2. Remove flanged cover on end of cartridge.

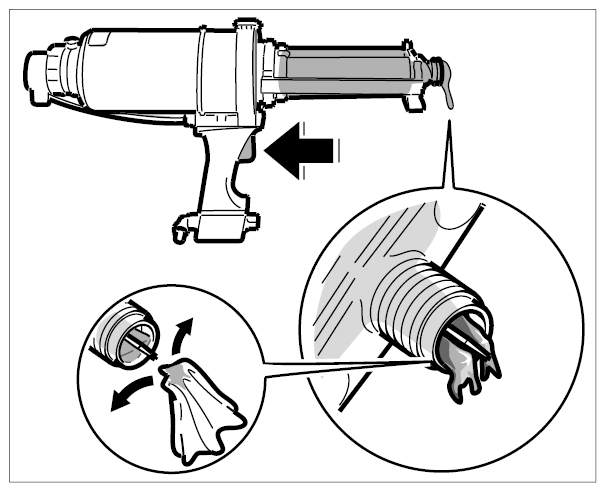

      Fig 1: Removing Flanged Cover On End Of Cartridge

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw on mixing nozzle.
   1. 2.1. Screw both cartridges -H5 & H6-  onto the mixing nozzle.

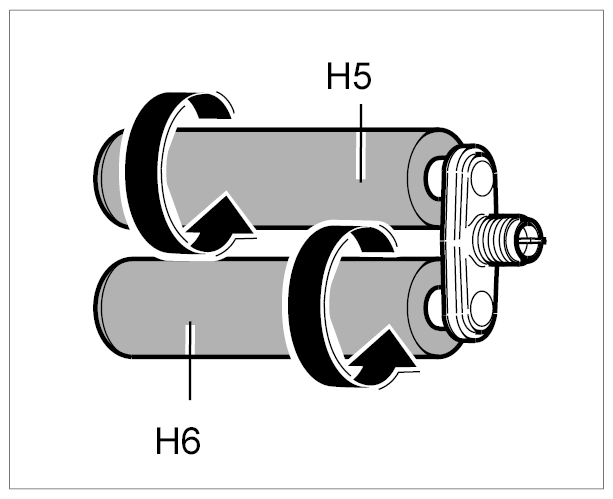

      Fig 2: Screwing Cartridges Onto Mixing Nozzle

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Insert cartridges into the double cartridge gun.
   1. 3.1. Move pressure pistons back fully.
   2. 3.2. Insert double cartridges -H5 & H6-  into the bonding gun -A-  .

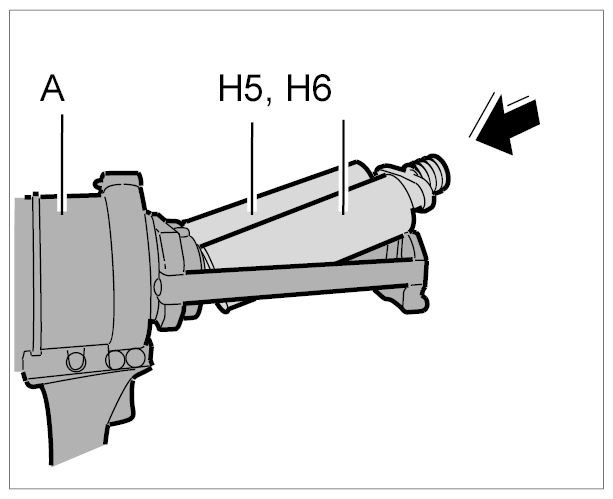

      Fig 3: Inserting Cartridges Into Double Cartridge Gun

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Press out adhesive.
   1. 4.1. Actuate the valve -arrow-  to allow the pressure pistons to move out until both components of the adhesive emerge at the mixing tube.
   2. 4.2. Wipe off emerging adhesive.
      Fig 4: Pressing Out Adhesive

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Screw on processing nozzle.
   1. 5.1. Screw processing nozzle -H8-  onto the mixing nozzle -H7-  .
      Fig 5: Screwing On Processing Nozzle

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Align processing nozzle.
   1. 6.1. Turn the processing nozzle on the mixing nozzle until the illustrated position is reached.
      Fig 6: Aligning Processing Nozzle

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Mix adhesive components.
   1. 7.1. Actuate the valve -arrow-  to allow the pressure pistons to move out slowly until the adhesive is visible in the processing pipe.

      Information

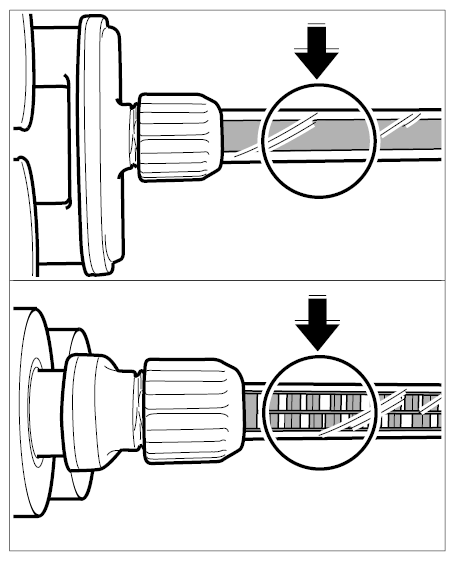

      In this position, when the mixing nozzle is horizontal, the closed surfaces must be visible on the processing nozzle from above and below and the mixer insert's mixing plates must be visible from the sides.

      Fig 7: Actuating Valve

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Bond vehicle window.

   Information

   • The bonding material has an open time of 15 min  , which means that the bonding material must be applied and the car window must be assembled within this period of time.
   • In order to ensure that the substance is completely mixed, apply a 30 mm long adhesive bead of fresh adhesive to a piece of cardboard before processing.

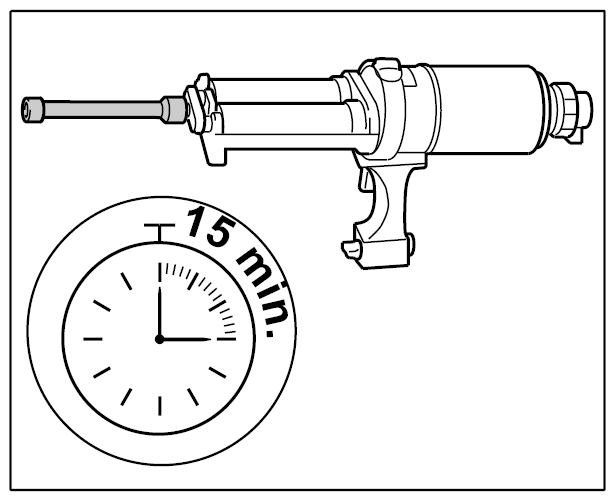

     Fig 8: Measuring Bonding Material Time

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
