Technical Values

Location Description Type Basic Value Tolerance 1 Tolerance 2
Cutting Wire, Total Length Approx. 6 Turns Of The Reel Length 6 m
Cutting Wire, Pull-In Length   Length 1 m
Applying Adhesive   Application Depth 15 mm

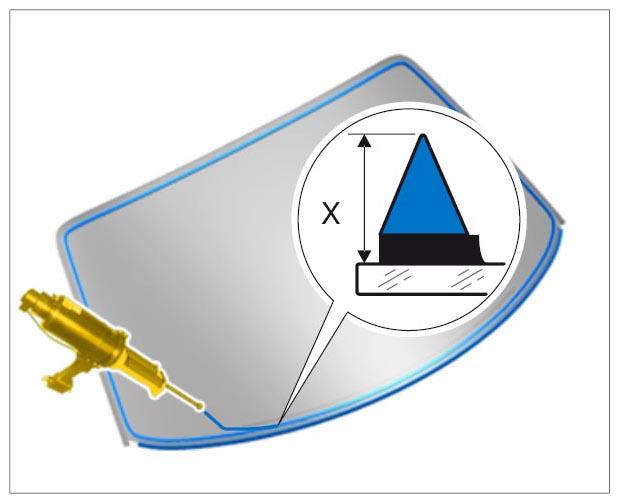

G09994748

Applying Adhesive
Gap Between Windshield And Body   Gap Dimension 3.0 mm
