Removing Windshield

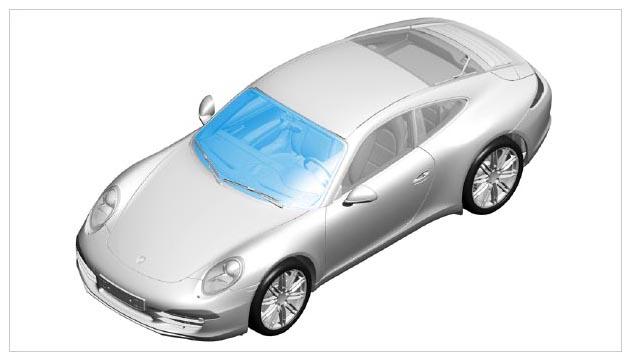

Fig 1: Identifying Windshield

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.

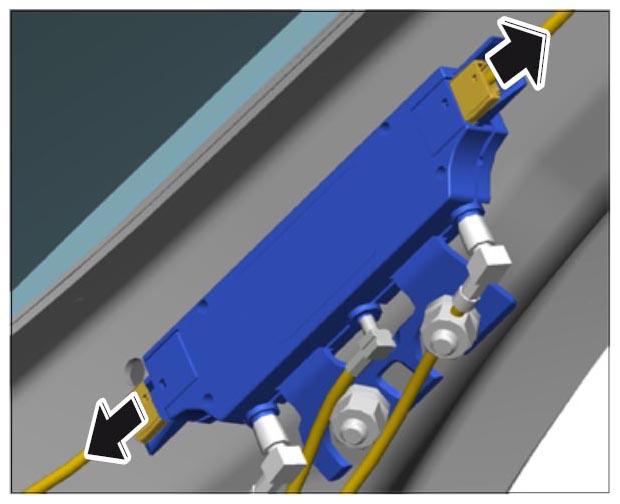

1. Unplug windshield antennas at both sides of the vehicle -arrows-  .
   Fig 2: Disconnecting Antenna Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

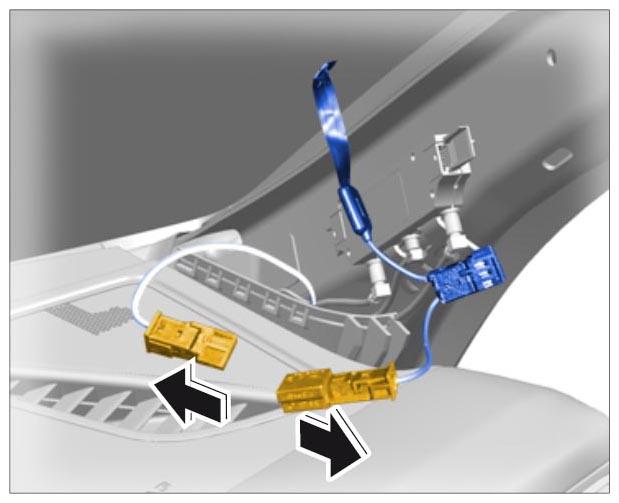

2. Disconnect plug connections on the A-pillar at the left and right -arrows-  .
   Fig 3: Disconnecting Plug Connection On A-Pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

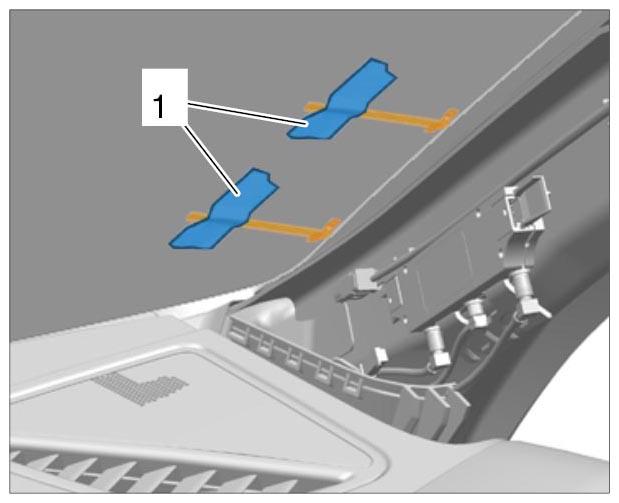

3. Affix all connectors securely to the windshield using adhesive tape -1-  .
   Fig 4: Identifying Windshield Adhesive Tape

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • The fastening force can be increased by moistening the fastening intake.
4. Attach the outer suction cups Suction Cups - Stahlwille WE 1140  to the windshield.
5. Unwind the cutting wire and cut using side cutters. → Length: 6 m

   Information

   • The cutting thread must be positioned under the rim.
6. Guide the cutting wire into the gap in the glass Cutting Tool For Bonded Windows - VAS 6452 WE 1480  .

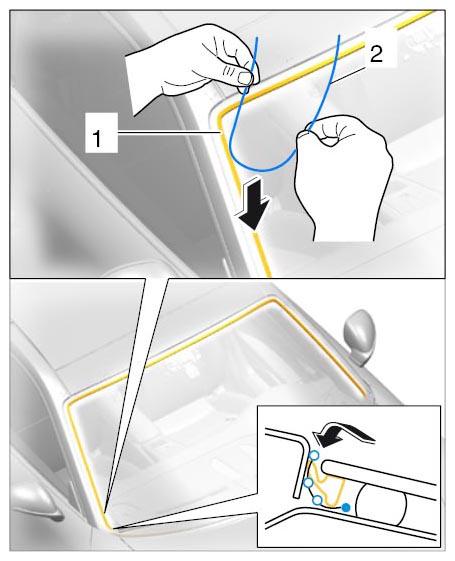

   1. 6.1. Wet the windshield seal -1-  all the way around with soapy water.
   2. 6.2. Pull the cutting wire -2-  all the way through the gap between the windshield and body -arrows-  .
   3. 6.3. Attach the free end of the cutting wire to the wiper linkage.
   Fig 5: Guiding Cutting Wire

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Guide the cutting wire inward.

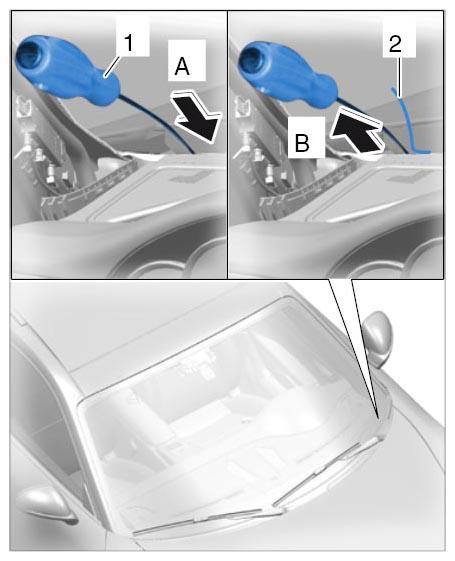

   1. 7.1. Use the scratch awl -1-  to apply a bead of adhesive from the inside out -arrow A-  .
   2. 7.2. Thread the cutting wire -2-  into the scratch awl and insert it into the passenger compartment -arrow B-  .
   3. 7.3. Pull the cutting wire into the passenger compartment. → Length: 1 m
      Fig 6: Guiding Cutting Wire

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

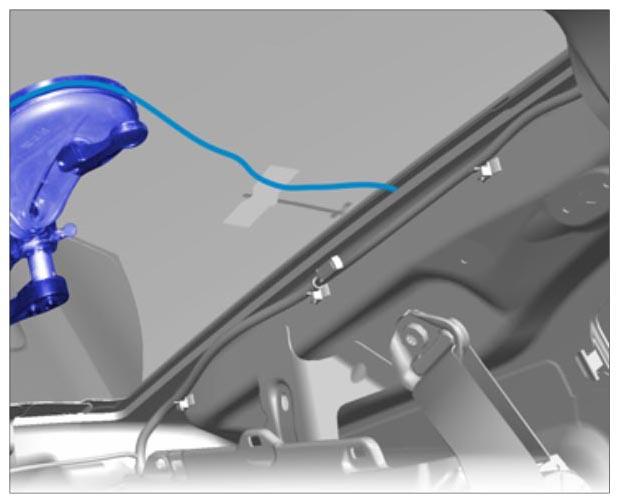

      • Make sure not to damage the electric connections when removing the glass with the cutting wire.
      • Cut up to just before the connection.
      • Slacken the cutting wire.
      • Guide the cutting wire past the connection on the inside.
        Fig 7: Guiding Cutting Wire

        Courtesy of PORSCHE CARS NORTH AMERICA, INC.

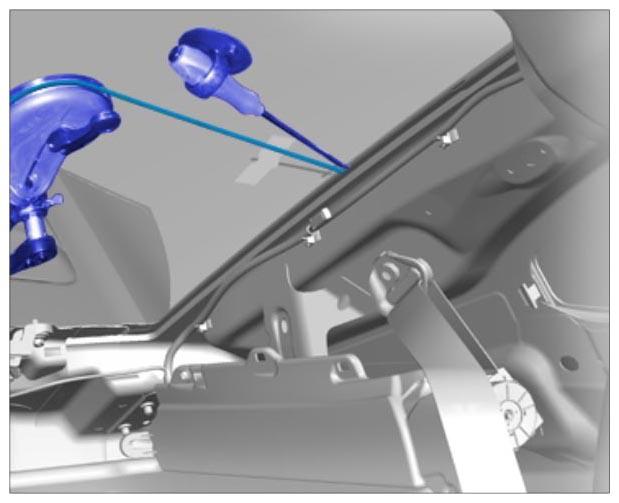

      • Counter with an awl.
        Fig 8: Identifying Countering With AWL

        Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      • Make sure that the cutting wire does not press against the electric connection when separating the glass.
      • Continue separating the window glass.

      Information

      • In order to guarantee optimum suction cup grip, it is advisable to clean the inside of the glass before removal.
8. Separate the windshield.

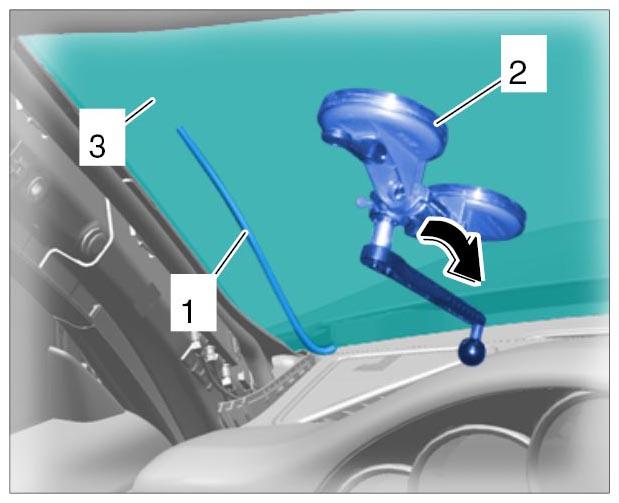

   1. 8.1. Insert the cutting wire -1-  into the bore on the spooling device -2-  .
   2. 8.2. Position the spooling device -2-  in the center of the glass and press the fastening intakes firmly against the windshield -3-  .
   3. 8.3. Secure the fastening intakes to the windshield using the actuating levers.
      Fig 9: Removing Windshield

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

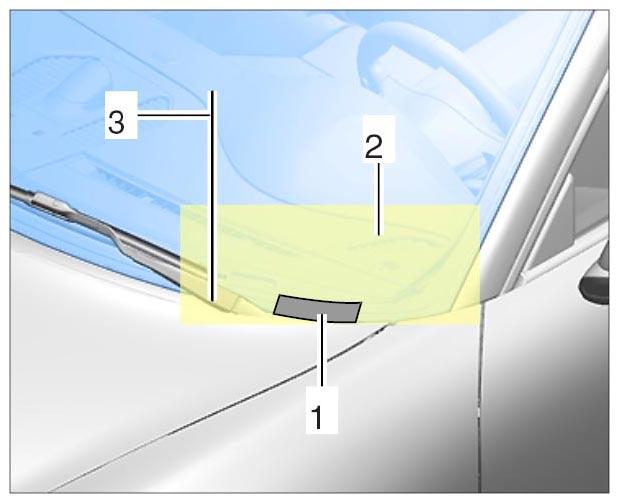

      • To prevent damage, slide the protective film -2- supplied with the cutting tool between the windshield and vehicle identification number -1-.
      • Guide the cutting wire -3- over the protective film when separating the glass. -arrow-
        Fig 10: Identifying Vehicle Identification Number Film

        Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 8.4. Remove the windshield by winding the cutting wire onto the spooling device in -direction of arrow-  .

      Reposition the spooling device to reduce the tensile force of the cutting wire when removing the glass.

9. Remove the windshield.
