74 - Seat UPHOLSTERIES, Cover -- 911 CARRERA (991)
>>
WM 745719 Removing And Installing Rear Seat Cushion (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Removing Rear Seat Cushion
>>
Removing Rear Lumbar Part
Removing Rear Lumbar Part
Pull lumbar part off towards the front.

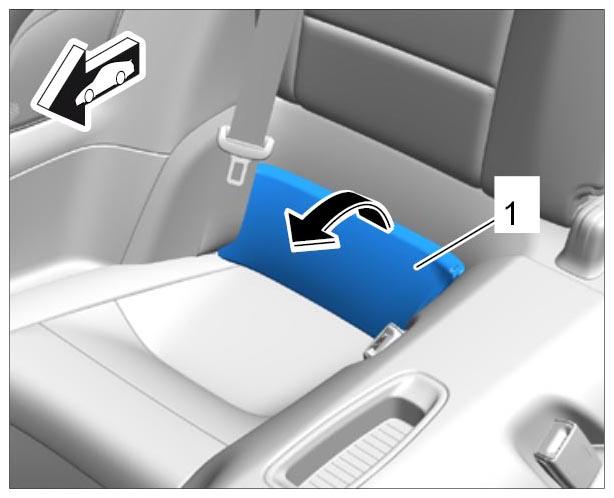

Fig 1: Removing Lumbar Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
