Removing Cover For Front Middle Backrest With Active Seat Ventilation

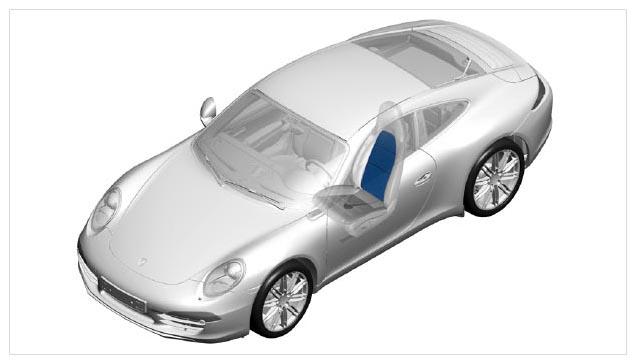

Fig 1: Identifying Front Middle Backrest Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release rear cover.

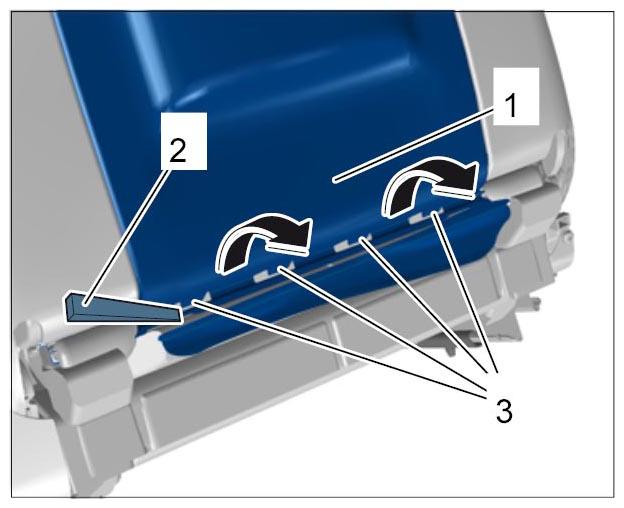

Fig 2: Releasing Rear Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Carefully press cover -1- out of the backrest shell using a plastic wedge -2- to disengage it from the clips -3- (-arrows- ).
Release cover at the front.

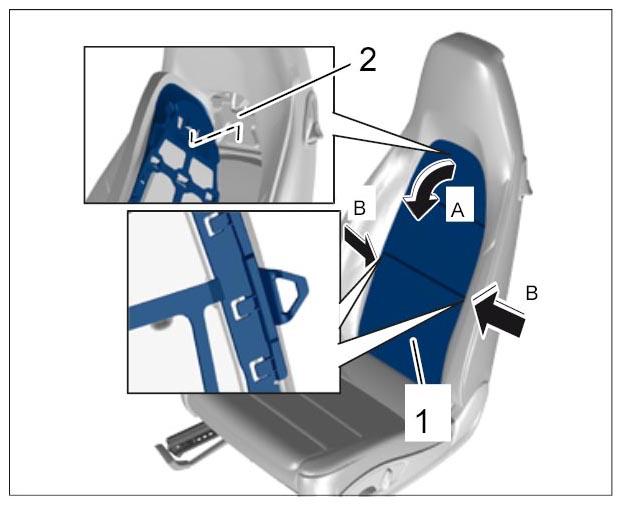

Fig 3: Releasing Front Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Press cover -1- together slightly at the sides -arrows B- and use a plastic wedge -3- to disengage the locking mechanism -inset- .
2. 2.2. Insert your hand in behind the top of the cover -1- and disengage it by pulling it up out of the backrest frame -2- (-arrow A- ).
  Information

  Carefully disengage cover for front middle backrest. Do not bend the retaining hook.
Release intake plenum.

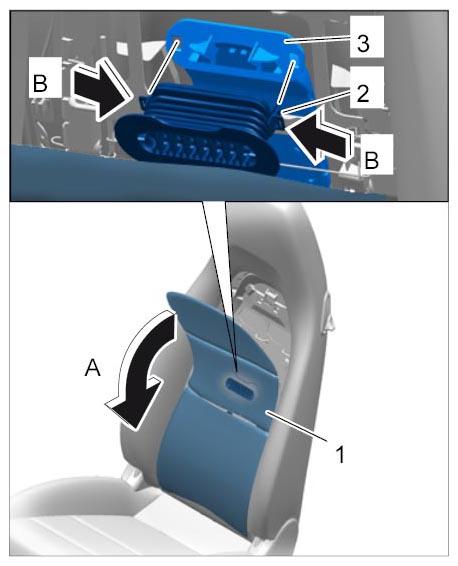

Fig 4: Releasing Intake Plenum
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Fold cover -1- forward slightly at the top -arrow A- .
2. 3.2. Release intake plenum -2- from the air duct -3- by pressing in the locking lugs -arrows B- .
  Information

  Mark plug connection assignment before disconnecting the plug connections.
Disconnect plug connections.

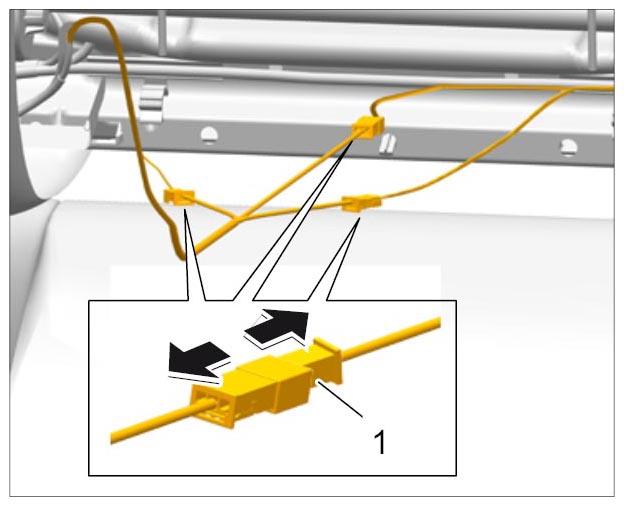

Fig 5: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Disconnect plug connections for backrest seat heating -1- (-arrows- ).
