Installing Cover For Front Middle Backrest

Lay the line in the recess on the backrest frame.

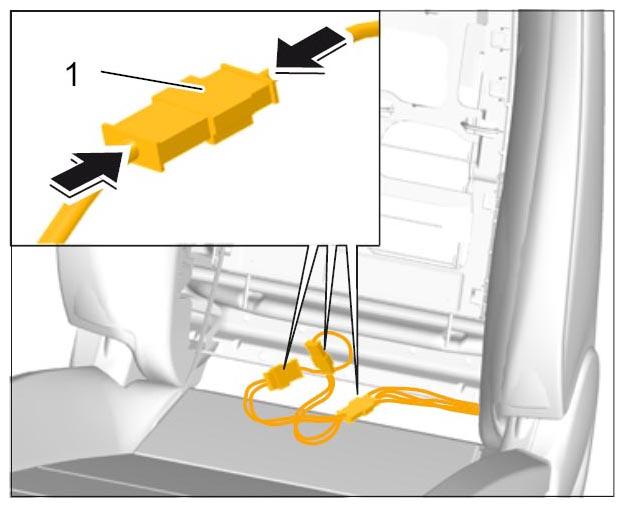

Fig 1: Connecting Plug Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

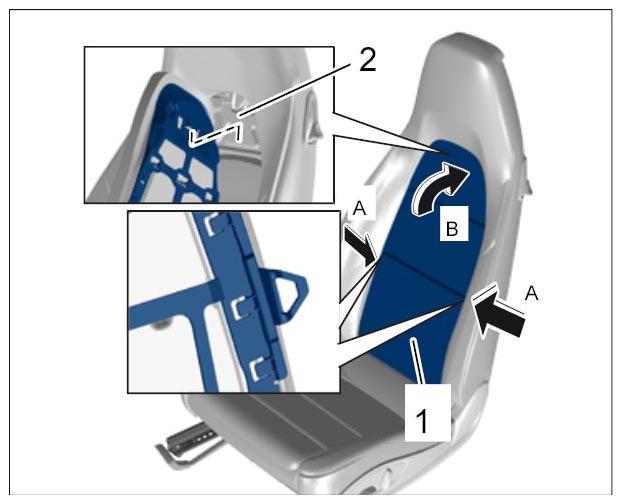

Fig 2: Securing Front Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Engage cover -1-  at the top in the backrest frame -2-  (-arrow B-  ).
2. 2.2. Press in cover -1-  in the middle -arrows A-  until the locking lugs -inset-  at the side engage.

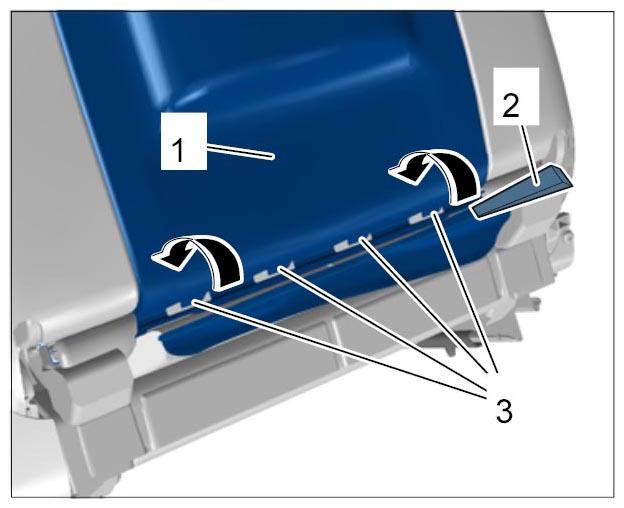

Fig 3: Securing Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Press the cover into the backrest shell -1-  at the bottom using a plastic wedge -2-  to push it into the clips -3-  (-arrows-  ) until it locks with an audible click.
