Installing Cover For Front Middle Backrest With Active Seat Ventilation

Place cover on the seat surface and plug in the plug connections for backrest seat heating -1- (-arrows- ).

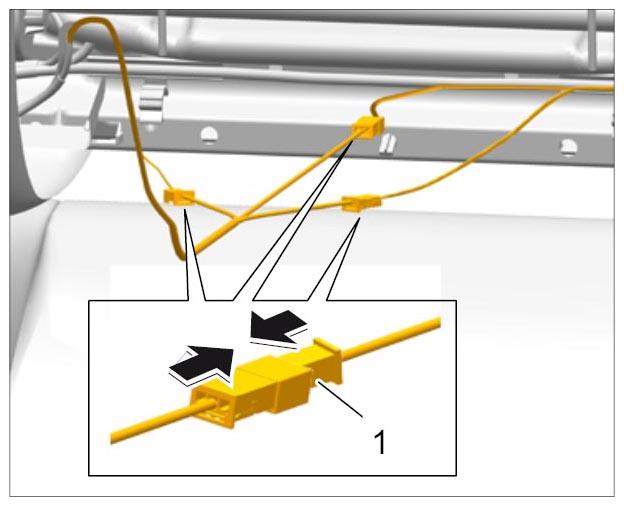

Fig 1: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure that the connections are plugged in fully.
Lock the intake plenum.

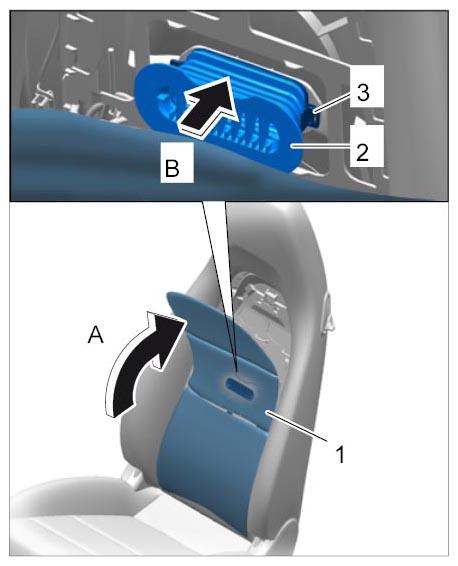

Fig 2: Pressing Intake Plenum Into Air Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Fold up cover -1- (-arrow A- ).
2. 2.2. Press intake plenum -2- into the air duct -3- (-arrow B- ) until the locking lugs lock with an audible click.
Secure front cover.

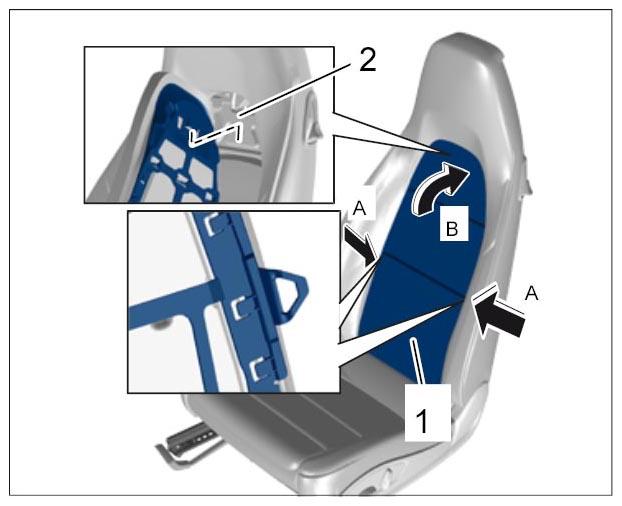

Fig 3: Securing Front Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Engage cover -1- at the top in the backrest frame -2- (-arrow B- ).
2. 3.2. Press in cover -1- in the middle -arrows A- until the locking lugs at the side engage.
Secure cover at the back.

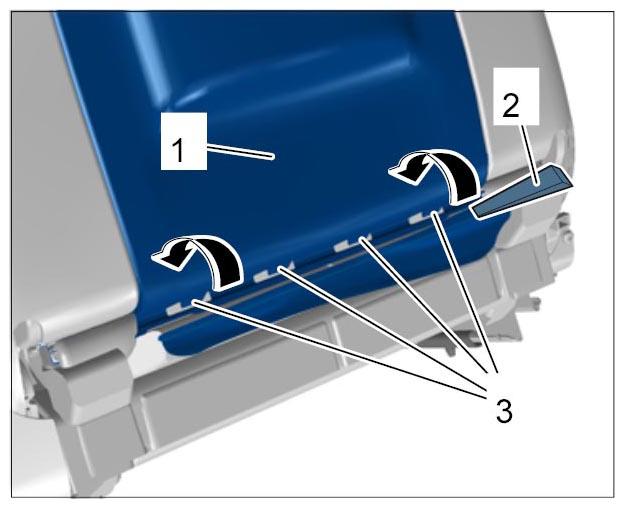

Fig 4: Securing Back Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Press cover -1- into the backrest shell -2- at the bottom using a plastic wedge -3- (-arrows- ) until it locks with an audible click.
