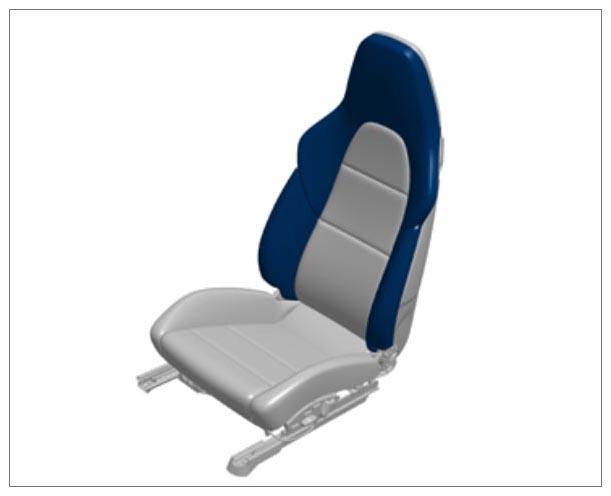

Removing Cover For Front Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

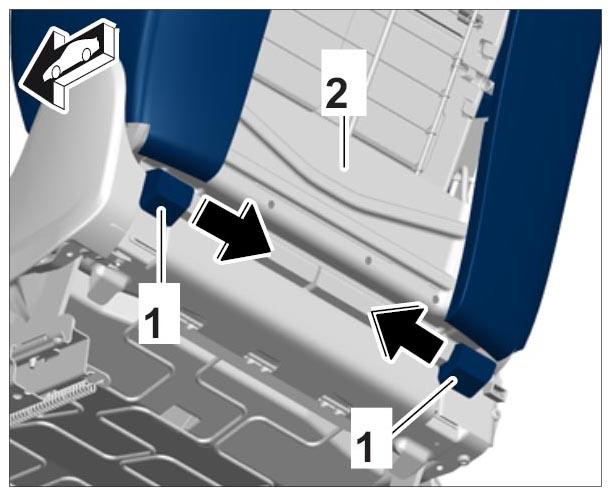

- Slide cover for backrest -1-
on the backrest shell -2-
at the bottom left and right, starting at the middle (-direction of arrow-
) and disengage it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

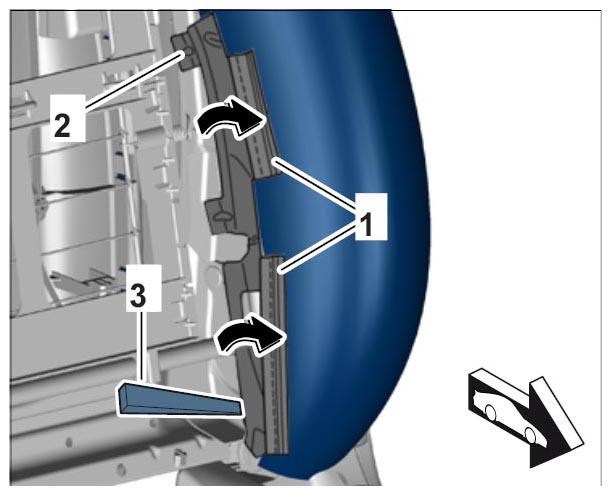

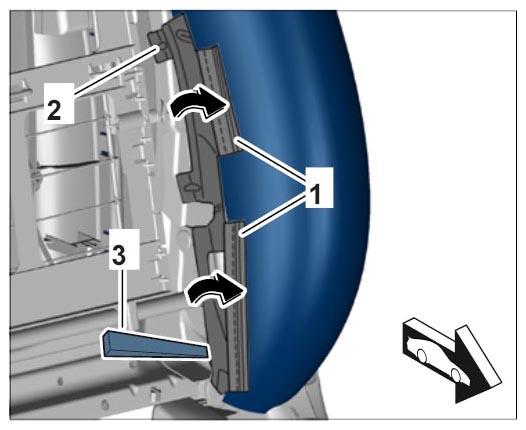

- Carefully press cover piping -1-
at the left and right out of the backrest frame -2-
using a plastic wedge -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

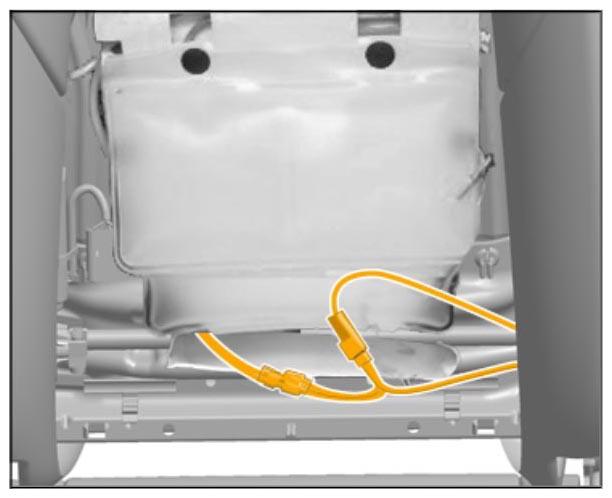

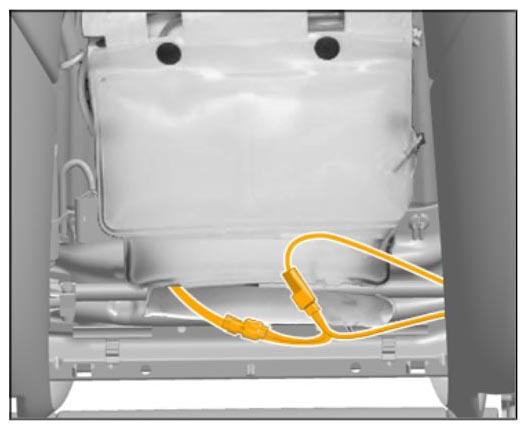

- Only for seat with ventilation: Disconnect cable for backrest side bolster heating.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

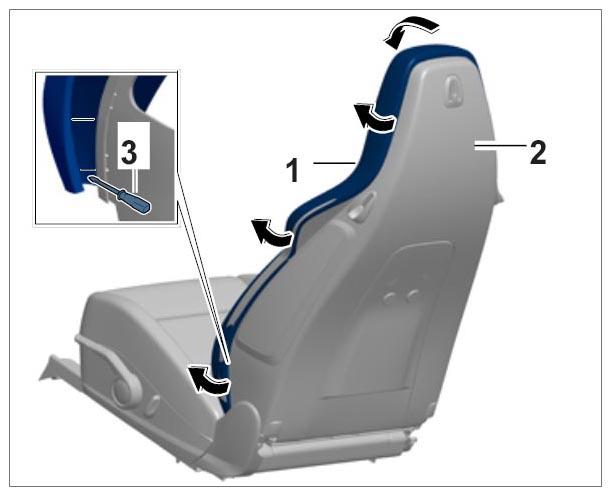

- Slightly loosen cover for backrest -1-
at the outer backrest shell -2-
, starting from the bottom, using a suitable tool -3-
and pull it out by hand all the way around -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

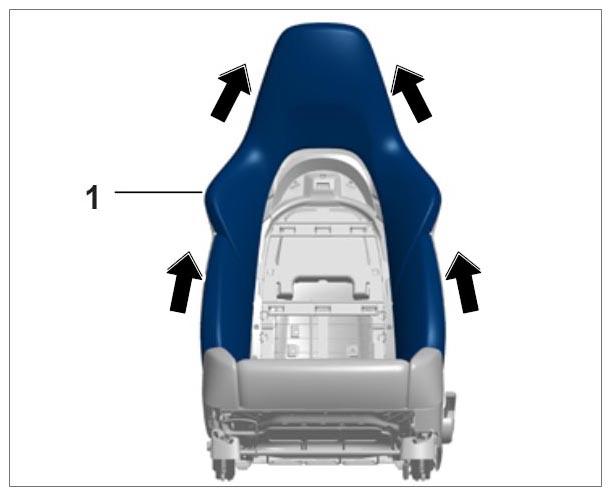

- Remove cover for backrest -1-
(-arrows-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
