Installing Cover For Front Backrest
- Check fastening clamps and fixing clips and replace them if necessary.

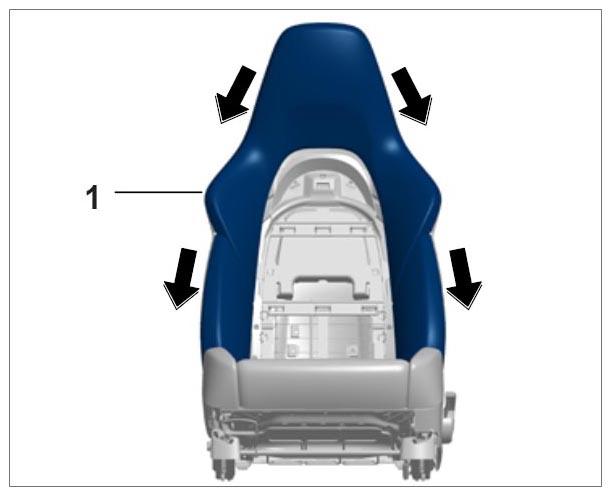

- Fit cover for backrest -1-
(-arrows-
) and align with contour of padding.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

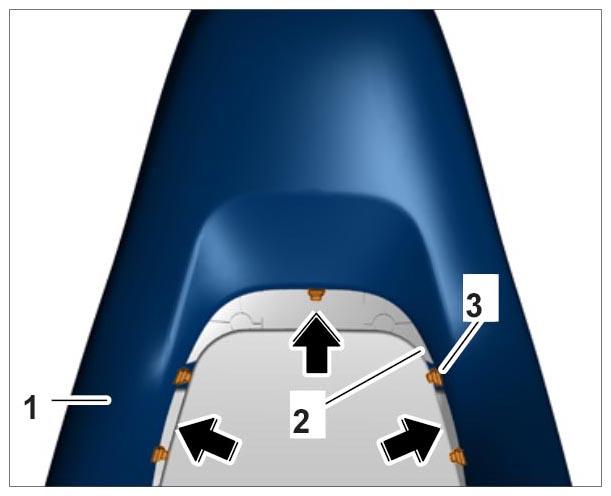

- Press plastic strip -2-
on cover for backrest -1-
into the fixing clips -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

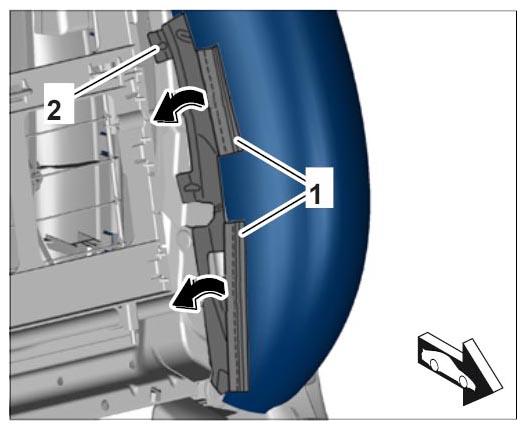

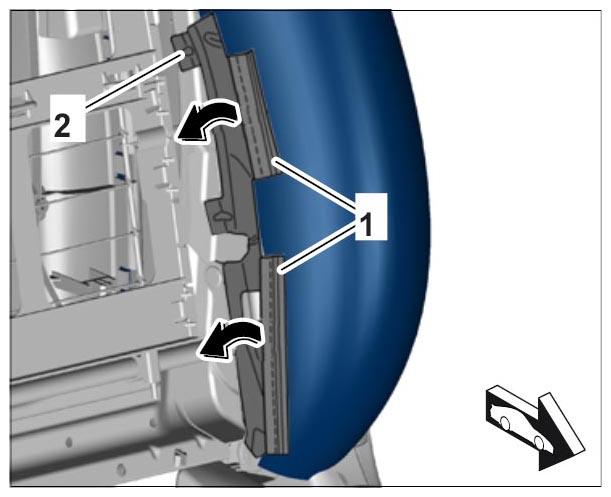

- Engage cover piping -1-
at the left and right into the backrest frame -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

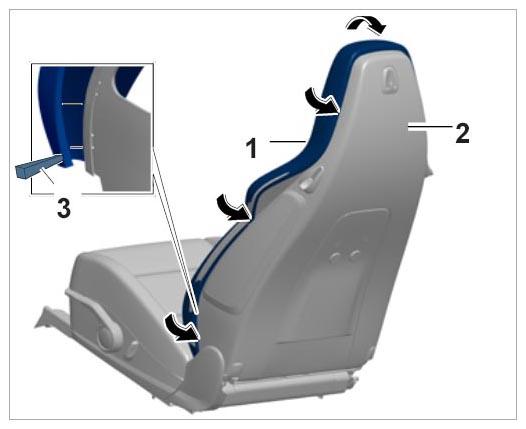

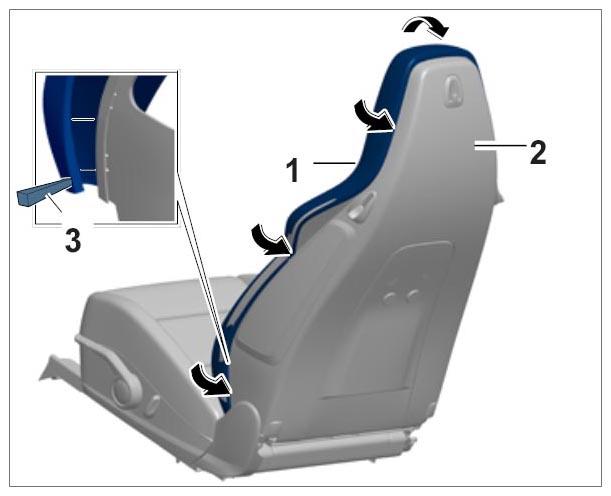

- Press connection for backrest cover -1-
sideways into the backrest frame -2-
using a plastic wedge -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

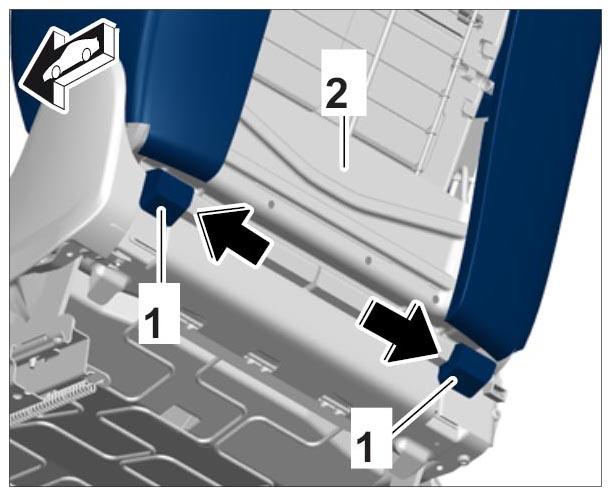

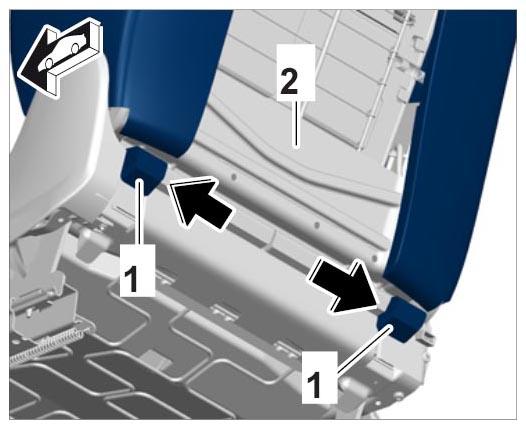

- Slide cover for backrest -1-
on the backrest shell -2-
at the bottom left and right, starting at the middle and moving to each side -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
