Preliminary Work

Information

The lumbar support and air cushions must be deflated before removing the front seat.

1. Remove front seat. → REMOVING FRONT SEAT .
2. Position front seat on assembly fixture.

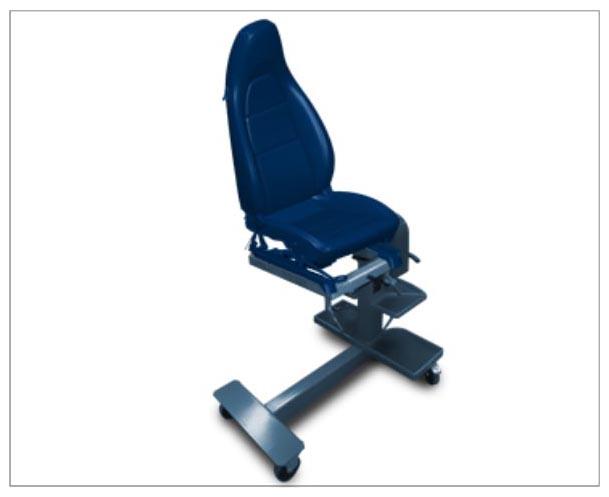

   Fig 1: Identifying Front Seat On Assembly Fixture

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove cover for front middle backrest. → Removing cover for front middle backrest  .
4. Remove cover for backrest. → REMOVING COVER FOR BACKREST .
5. Remove control button for backrest release at the left and right. → REMOVING CONTROL BUTTON FOR BACKREST RELEASE .

1. Remove sports bucket seat. → REMOVING FOLDING SPORTS BUCKET SEAT .
2. Fit sports bucket seat on assembly fixture. → MOUNTING FRONT SEAT ON ASSEMBLY FIXTURE .
3. Remove upper belt strap guide. → REMOVING UPPER BELT STRAP GUIDE .
