Installing Padding For Front Middle Backrest With Active Seat Ventilation

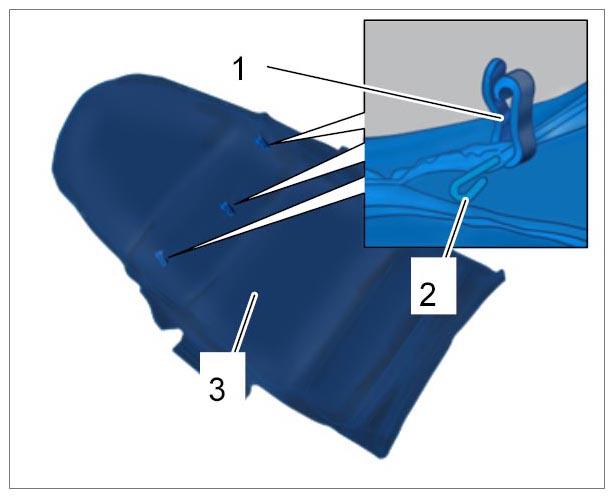

- Check cushion clips -1-
and engage them in the integrated metal strut -2-
for the cover -3-
if necessary.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

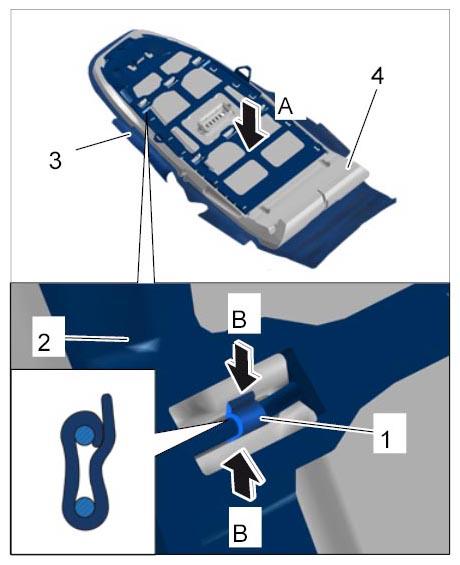

- Fit cover -3-
and padding -4-
and align with the contour of the plastic frame -2-
(-arrow A-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press cushion clips -1-
through the cut-out in the padding -4-
and into the plastic frame -2-
(-arrow B-
) until they engage securely.

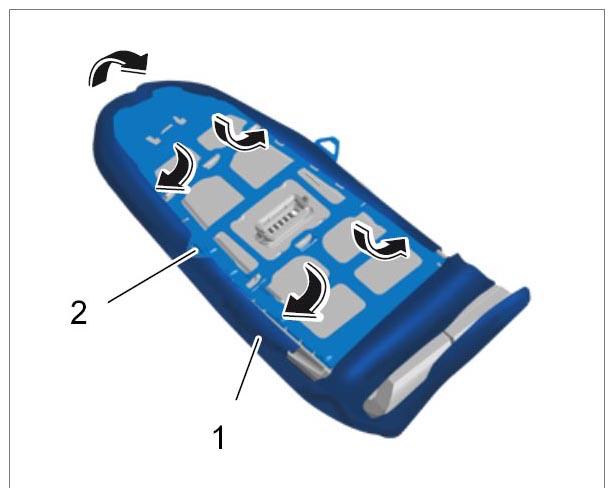

- Engage cover -1-
in the plastic frame -2-
all the way around -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
